2CPX041124R9999

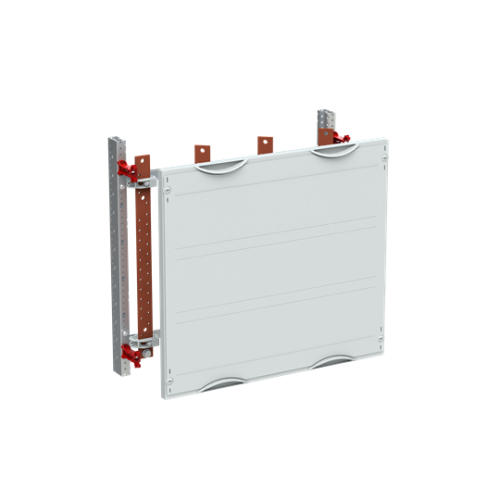

MS228 Busbar system vertical 450 mm x 500 mm x 200 mm , 00

Manufacturer's No: 41124     Manufacturer: ABB
MS228 Busbar system vertical 450 mm x 500 mm x 200 mm , 00

Availability On Request

£250.65
  • Busbar system vertical
  • Interior fitting module for Busbar system
  • Dimensions: 450 mm x 500 mm x 200 mm
  • Grid unit: 3 GU = 450 mm
  • Panel width: 500 mm
  • Space units: 72
  • Busbar alignment: vertical
  • Busbar holders: ZX518
  • Busbar center distance: 40 mm
  • 4 Cu busbars, rated current: 440 A

Read more

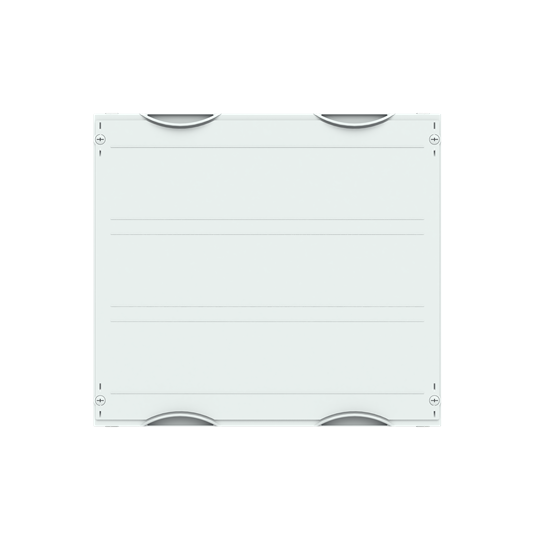

  • Covers made of Plastic, 90 degree press and turn closure
  • RAL 7035 color
  • Cover design: Closed
  • Usable from cabinet depth of 200 mm


Product

Manufacturer Material ID -
41124
Net Weight -
3.78kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
450 Millimetre
Max. rated current -
440 Ampere
Number of poles -
4
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
500 Millimetre
With cover -
ABB

Availability On Request

£250.65
