2CPX041232R9999

MK307 DIN rail for terminals horizontal 300 mm x 750 mm x 200 mm , 2 , 000

Manufacturer's No: 41232     Manufacturer: ABB
MK307 DIN rail for terminals horizontal 300 mm x 750 mm x 200 mm , 2 , 000

Availability Back Order

£163.36

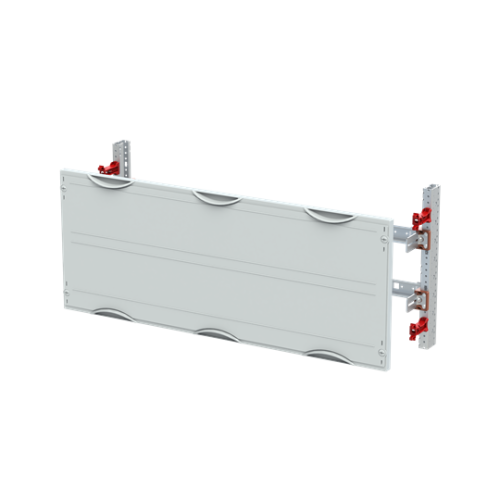

  • MK307 DIN rail for terminals horizontal
  • Dimensions: 300 mm x 750 mm x 200 mm
  • Interior fitting module, CombiLine
  • Grid unit: 2 GU = 300 mm
  • Panel width: 3 = 750 mm
  • 72 Space units, Row distance: 150 mm
  • DIN rail size: 35 x 15 mm with perforation for wire holders
  • Stepless adjustable via mounting bracket
  • Usable depth: 68 mm up to 145 mm
  • Usable width: 688 mm

Read more

  • Additional stabilization profile for DIN rail
  • Plastic covers with 90-degree press and turn closure
  • RAL 7035 color
  • Cover design: Closed
  • Usable for cabinet depth of 200 mm or more


Product

Manufacturer Material ID -
41232
Net Weight -
2.44kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Number of poles -
-
Number of clamp positions per pole -
-
Conductor cross section flexible (fine-strand) with cable end sleeve -
- Square millimetre
Conductor cross section solid (solid, stranded) -
- Square millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
850 Ampere
Width -
750 Millimetre
ABB

Availability Back Order

£163.36
