2CMA166942R1000

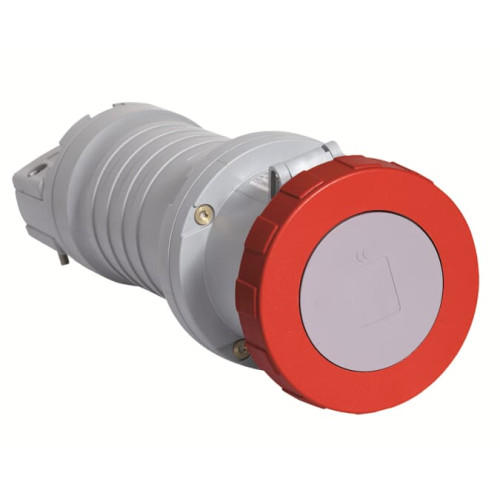

Connector, earthing sleeve position 11h, rated current 125A, IP67 watertight, 3-poles+neutral+earth, frequency 60 Hz, color code R

Manufacturer's No: 4125C11W     Manufacturer: ABB
Connector, earthing sleeve position 11h, rated current 125A, IP67 watertight, 3-poles+neutral+earth, frequency 60 Hz, color code Red

Availability Back Order

POA
  • Connector type: Earthing sleeve position 11h
  • Rated current: 125A
  • IP rating: IP67 (watertight)
  • Configuration: 3-poles + neutral + earth
  • Frequency: 60 Hz
  • Color code: Red


Product

Manufacturer Material ID -
4125C11W
Net Weight -
1.63kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

RAL-number -
7001
Cable entry -
Anti-kink sleeve
Amperage acc. UL/CSA (for UL-version) -
125 Ampere
Degree of protection (IP) -
IP67
RAL number -
7001
Number of poles -
5
Material -
Plastic
IEC-amperage -
125 Ampere
Connection system -
Screwed terminal
Angle of plug -
Straight
Degree of protection (IP rating) -
IP67
Clock hour position -
11 Hour
Identification colour -
Red
Voltage acc. EN 60309-2 -
400-440 V (50+60 Hz) red
ABB

Availability Back Order

POA
