2CMA162792R1000

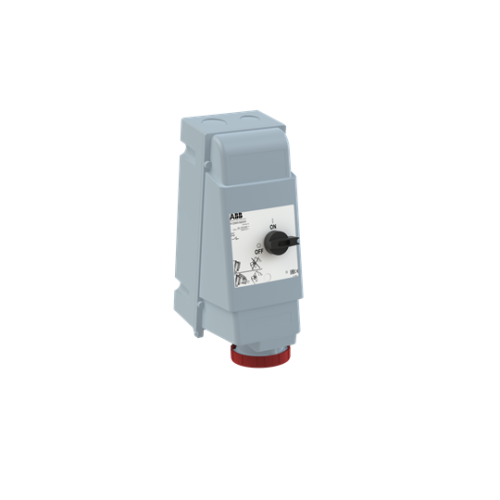

Switched Interlocked Socket Outlet, vertical, Heavy Duty, earthing sleeve position 6h, rated current 125A, IP67 watertight, 3-pole

Manufacturer's No: 4125MVS6WH     Manufacturer: ABB
Switched Interlocked Socket Outlet, vertical, Heavy Duty, earthing sleeve position 6h, rated current 125A, IP67 watertight, 3-poles+neutral+earth

Availability Back Order

£1,211.23
  • Switched Interlocked Socket Outlet
  • Vertical orientation
  • Heavy Duty design
  • Earthing sleeve position: 6h
  • Rated current: 125A
  • IP67 watertight rating
  • Configuration: 3-poles + neutral + earth


Product

Manufacturer Material ID -
4125MVS6WH
Net Weight -
4.30kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Amperage acc. UL/CSA (for UL-version) -
- Ampere
RAL-number -
7001
Cable entry -
Other
Degree of protection (IP) -
IP67
Model -
Surface mounted
RAL number -
7001
Number of poles -
5
Insulated mounting -
Material -
Plastic
Type of fastening -
Inner lying mounting
IEC-amperage -
125 Ampere
Connection system -
Screwed terminal
Degree of protection (IP rating) -
IP67
Clock hour position -
6 Hour
Identification colour -
Red
Voltage acc. EN 60309-2 -
400-440 V (50+60 Hz) red
ABB

Availability Back Order

£1,211.23
