2CPX041280R9999

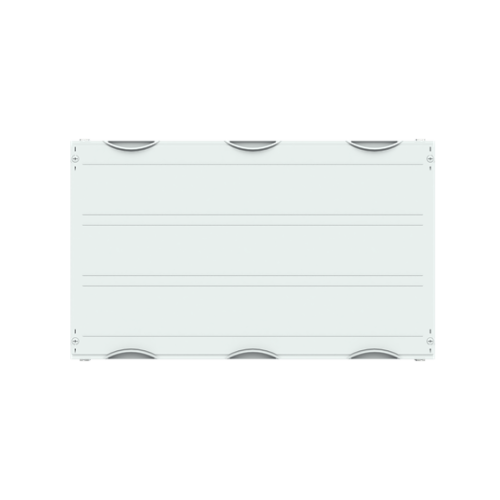

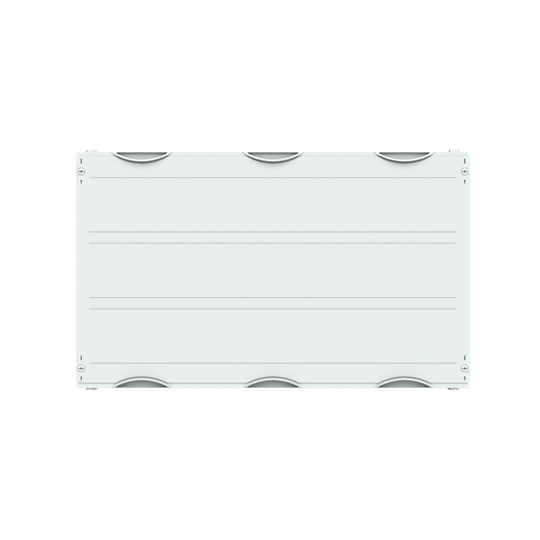

MS331 Busbar system horizontal 450 mm x 750 mm x 275 mm , 00

Manufacturer's No: 41280     Manufacturer: ABB
MS331 Busbar system horizontal 450 mm x 750 mm x 275 mm , 00

Availability On Request

£259.42
  • MS331 Busbar system horizontal
  • Interior fitting module for Busbar system horizontal
  • Dimensions: 450 mm x 750 mm x 275 mm
  • Grid unit: 3 GU = 450 mm
  • Panel width: 750 mm
  • 108 Space units
  • Busbar alignment: horizontal
  • Busbar holders: ZX520
  • Busbar center distance: 100 mm
  • Maximum 3 Cu busbars (must be ordered separately)

Read more

  • Rated current: 850 A
  • Covers made of Plastic, RAL 7035
  • Closure: 90-degree press and turn
  • Design of the cover: Closed
  • Usable for cabinet depth of 275 mm


Product

Manufacturer Material ID -
41280
Net Weight -
3.34kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
100 Millimetre
Busbar height -
40 Millimetre
Busbar position -
Centre central
Busbar thickness -
10 Millimetre
Depth -
275 Millimetre
Height -
450 Millimetre
Max. rated current -
850 Ampere
Number of poles -
3
Short-circuit breaking capacity (Icw) -
25 kiloampere
Width -
750 Millimetre
With cover -
