2CPX041287R9999

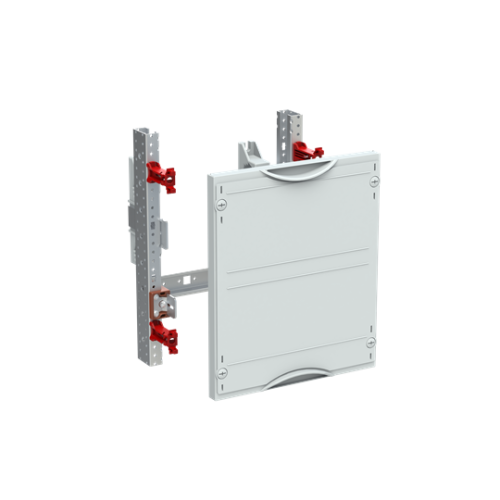

MN162 N/PE busbar and terminals 300 mm x 250 mm x 260 mm , 1 , 000

Manufacturer's No: 41287     Manufacturer: ABB
MN162 N/PE busbar and terminals 300 mm x 250 mm x 260 mm , 1 , 000

Availability On Request

£101.45
  • MN162 N/PE busbar and terminals
  • Interior fitting module for N/PE busbar and terminals
  • Dimensions: 300 mm x 250 mm x 260 mm
  • Grid unit: 2 GU = 300 mm
  • Panel width: 250 mm
  • Stepless adjustable via mounting bracket
  • Usable depth: 90 mm up to 145 mm
  • Usable width: 188 mm
  • For 2-pole busbar system
  • Busbar alignment: horizontal

Read more

  • Busbar holders ZX149 for maximum 2 Cu busbars
  • Rated current: maximum 630 A
  • Covers made of plastic, RAL 7035
  • 90-degree press and turn closure
  • Design of the cover: Closed
  • Usable with cabinet depth of 275 mm or more


Product

Manufacturer Material ID -
41287
Net Weight -
1.33kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
92 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
10 Millimetre
Depth -
260 Millimetre
Height -
300 Millimetre
Max. rated current -
630 Ampere
Number of poles -
2
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
250 Millimetre
With cover -
ABB

Availability On Request

£101.45
