2CPX041288R9999

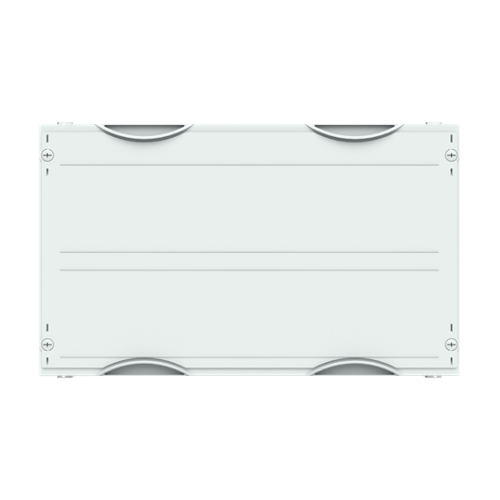

MN262 N/PE busbar and terminals 300 mm x 500 mm x 260 mm , 1 , 000

Manufacturer's No: 41288     Manufacturer: ABB
MN262 N/PE busbar and terminals 300 mm x 500 mm x 260 mm , 1 , 000

Availability Back Order

£118.23
  • MN262 N/PE busbar and terminals
  • Interior fitting module for N/PE busbar and terminals
  • Dimensions: 300 mm x 500 mm x 260 mm
  • Grid unit: 2 GU = 300 mm
  • Panel width: 500 mm
  • Stepless adjustable via mounting bracket
  • Usable depth: 90 mm up to 145 mm
  • Usable width: 438 mm
  • Busbar system: 2-pole
  • Busbar alignment: horizontal

Read more

  • Maximum 2 Cu busbars
  • Rated current: 630 A
  • Covers made of plastic, RAL 7035
  • 90-degree press and turn closure
  • Design of the cover: Closed
  • Usable as of cabinet depth of 275 mm


Product

Manufacturer Material ID -
41288
Net Weight -
1.80kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
92 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
10 Millimetre
Depth -
260 Millimetre
Height -
300 Millimetre
Max. rated current -
630 Ampere
Number of poles -
2
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
500 Millimetre
With cover -
ABB

Availability Back Order

£118.23
