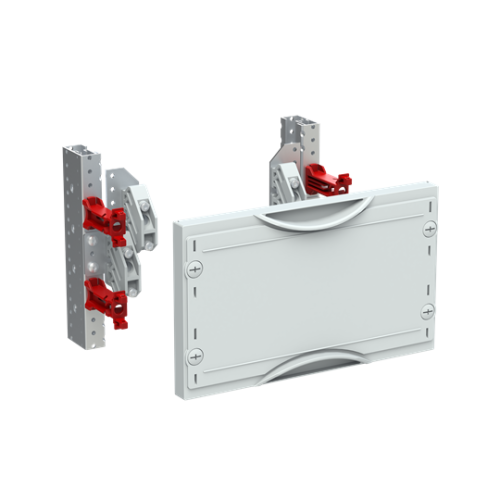

2CPX041424R9999

MBN169 N/PE busbar and terminals horizontal 150 mm x 250 mm x 200 mm , 0 , 0000

Manufacturer's No: 41424     Manufacturer: ABB
MBN169 N/PE busbar and terminals horizontal 150 mm x 250 mm x 200 mm , 0 , 0000

Availability On Request

£104.14
  • Model: MBN169 N/PE busbar and terminals
  • Dimensions: 150 mm x 250 mm x 200 mm
  • Interior fitting module for CombiLine
  • Modular distribution panel (unassembled)
  • Grid unit: 1 GU = 150 mm
  • Panel width: 250 mm
  • 12 Space units
  • Busbar system: 2-pole
  • Busbar alignment: horizontal
  • Busbar holders: ZX518

Read more

  • Busbar center distance: 40 mm
  • Maximum 2 Cu busbars (ordered separately)
  • Maximum rated current: 320 A
  • Material: Plastic (covers)
  • Closure: 90-degree press and turn
  • Color: RAL 7035
  • Cover design: Closed
  • Usable from cabinet depth of 200 mm


Product

Manufacturer Material ID -
41424
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
12 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
150 Millimetre
Max. rated current -
320 Ampere
Number of poles -
2
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
250 Millimetre
With cover -
ABB

Availability On Request

£104.14
