2CPX041648R9999

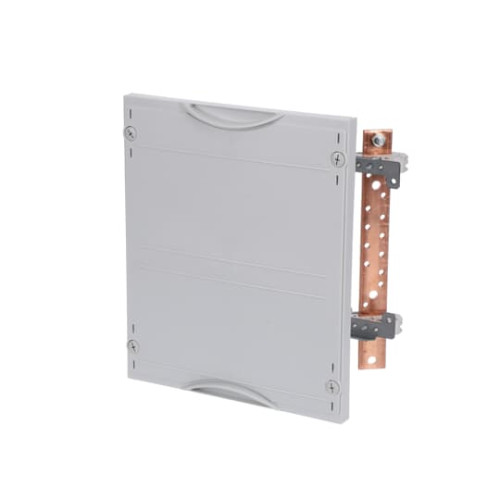

MBS128 Busbar system vertical 300 mm x 250 mm x 200 mm , 000

Manufacturer's No: 41648     Manufacturer: ABB

Availability Back Order

£169.44
  • MBS128 Busbar system vertical
  • Interior fitting module, CombiLine
  • Modular distribution panel not assembled
  • Grid unit: 2 GU = 300 mm
  • Panel width: 250 mm
  • 24 Space units
  • Busbar system 4-pole
  • Busbar alignment: vertical
  • Busbar holders: ZX518
  • Busbar center distance: 40 mm

Read more

  • 4 Cu busbars, rated current maximum: 440 A
  • Covers made of Plastic, 90 degree press and turn closure, RAL 7035
  • Design of the cover: Closed
  • Usable as of the cabinet depth of 200 mm


Product

Manufacturer Material ID -
41648
Net Weight -
2.49kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
440 Ampere
Number of poles -
4
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
250 Millimetre
With cover -
ABB
