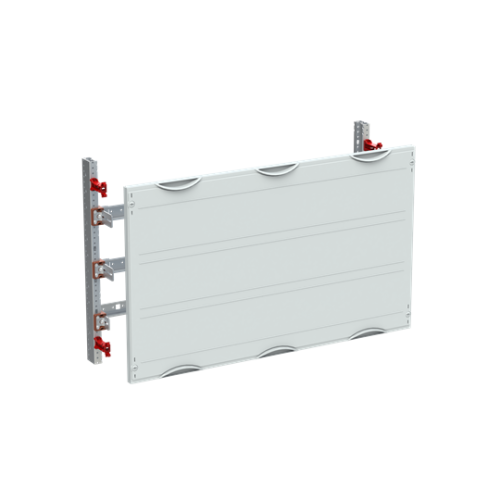

2CPX041693R9999

MBK308 DIN rail for terminals horizontal 450 mm x 750 mm x 200 mm , 3 , 00

Manufacturer's No: 41693     Manufacturer: ABB
MBK308 DIN rail for terminals horizontal 450 mm x 750 mm x 200 mm , 3 , 00

Availability On Request

£220.69
  • MBK308 DIN rail for terminals horizontal
  • Dimensions: 450 mm x 750 mm x 200 mm
  • Interior fitting module, CombiLine
  • Modular distribution panel not assembled
  • Grid unit: 3 GU = 450 mm
  • Panel width: 3 = 750 mm
  • 108 Space units
  • Row distance: 150 mm
  • DIN rail size: 35 x 15 mm with perforation for wire holders
  • Additional stabilization profile for DIN rail

Read more

  • Stepless adjustable via mounting bracket
  • Usable depth: 68 mm to 145 mm
  • Usable width: 688 mm
  • Covers made of plastic
  • 90-degree press and turn closure
  • Color: RAL 7035
  • Cover design: Closed
  • Usable for cabinet depth of 200 mm or more


Product

Manufacturer Material ID -
41693
Net Weight -
4.31kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Number of poles -
-
Number of clamp positions per pole -
-
Conductor cross section flexible (fine-strand) with cable end sleeve -
- Square millimetre
Conductor cross section solid (solid, stranded) -
- Square millimetre
Depth -
200 Millimetre
Height -
450 Millimetre
Max. rated current -
850 Ampere
Width -
750 Millimetre
ABB

Availability On Request

£220.69
