2CMA167030R1000

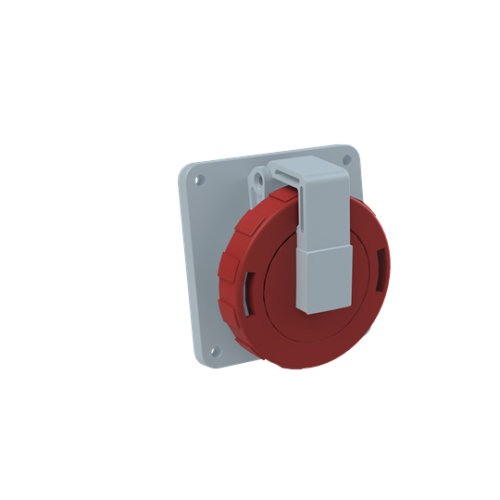

Socket-outlet, panel mounting, earthing sleeve position 6h, rated current 16A, IP67 watertight, unified flange, angled, 3-poles+ne

Manufacturer's No: 416RAU6W     Manufacturer: ABB
Socket-outlet, panel mounting, earthing sleeve position 6h, rated current 16A, IP67 watertight, unified flange, angled, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Availability Back Order

POA
  • Socket-outlet for panel mounting
  • Rated current: 16A
  • Earthing sleeve position: 6h
  • IP67 watertight
  • Unified flange with angled design
  • Configuration: 3-poles + neutral + earth
  • Frequency: 50-60 Hz
  • Color code: Red


Product

Manufacturer Material ID -
416RAU6W
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

Cable entry -
UN
RAL-number -
7001
Amperage acc. UL/CSA (for UL-version) -
16 Ampere
Degree of protection (IP) -
IP67
RAL number -
7001
Number of poles -
5
Rated frequency -
50 Hertz
Material -
Plastic
IEC-amperage -
16 Ampere
Connection system -
Screwed terminal
Angle of plug -
Angled
Rated voltage -
200 Volt
Degree of protection (IP rating) -
IP67
Clock hour position -
6 Hour
Identification colour -
Red
Voltage acc. EN 60309-2 -
400-440 V (50+60 Hz) red
Drill hole distance vertical -
79.5 Millimetre
Drill hole distance horizontal -
79.5 Millimetre
Flange size vertical -
95 Millimetre
Flange size horizontal -
95 Millimetre
