2CPX041738R9999

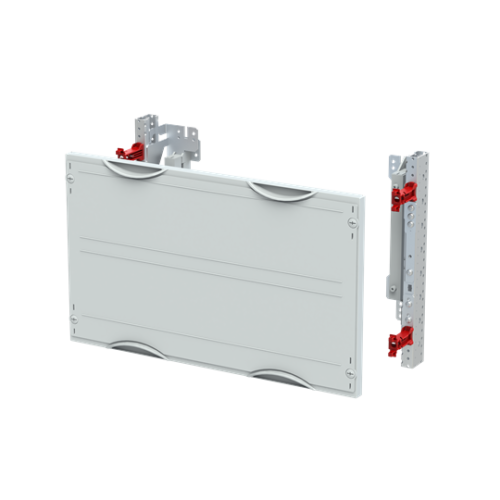

MBS224 Busbar system horizontal 300 mm x 500 mm x 200 mm , 000

Manufacturer's No: 41738     Manufacturer: ABB
MBS224 Busbar system horizontal 300 mm x 500 mm x 200 mm , 000

Availability On Request

£130.57
  • MBS224 Busbar system horizontal
  • Interior fitting module, CombiLine
  • Modular distribution panel not assembled
  • Grid unit 2 GU = 300 mm, panel width 2 = 500 mm
  • 48 Space units, unequipped for installation
  • Busbar alignment: horizontal, with busbar holders ZB5
  • Busbar center distance: 40 mm, for maximum 5 Cu busbars
  • Rated current maximum 360 A

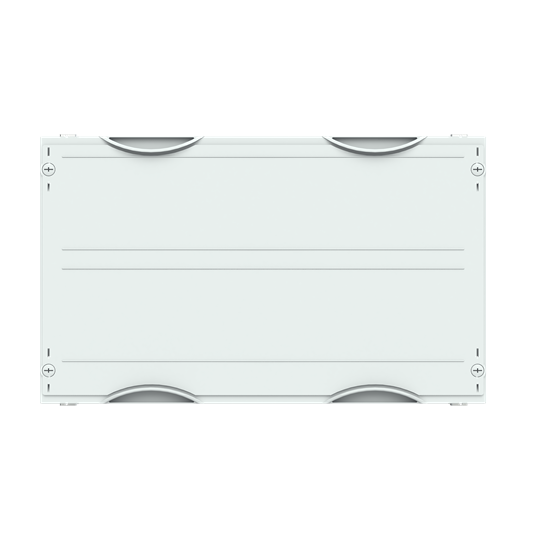

  • Covers made of Plastic, 90-degree press and turn closure, RAL 7035
  • Design of the cover: Closed

Read more

  • Usable as of cabinet depth of 200 mm


Product

Manufacturer Material ID -
41738
Net Weight -
1.99kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
12 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
360 Ampere
Number of poles -
5
Short-circuit breaking capacity (Icw) -
15 kiloampere
Width -
500 Millimetre
With cover -
