2CPX041740R9999

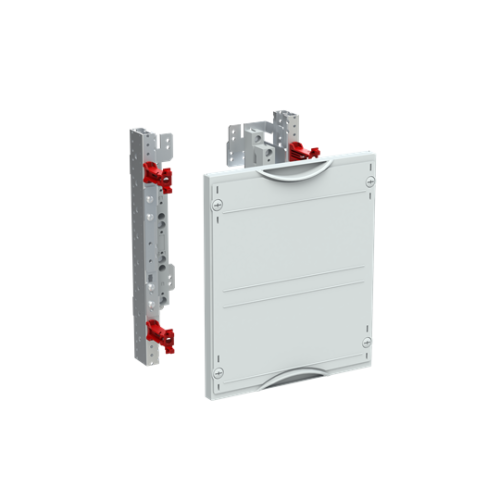

MBS127 Busbar system horizontal 300 mm x 250 mm x 215 mm , 000

Manufacturer's No: 41740     Manufacturer: ABB
MBS127 Busbar system horizontal 300 mm x 250 mm x 215 mm , 000

Availability On Request

£152.66
  • MBS127 Busbar system horizontal
  • Interior fitting module for CombiLine
  • Modular distribution panel (unassembled)
  • Grid unit: 2 GU = 300 mm
  • Panel width: 250 mm
  • 24 Space units
  • Busbar alignment: horizontal
  • Busbar holders: ZX151
  • Busbar center distance: 60 mm
  • Maximum 3 Cu busbars (must be ordered separately)

Read more

  • Rated current: 630 A
  • Plastic covers with 90-degree press and turn closure (RAL 7035)
  • Cover design: Closed
  • Usable as of cabinet depth of 215 mm


Product

Manufacturer Material ID -
41740
Net Weight -
1.08kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
60 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
215 Millimetre
Height -
300 Millimetre
Max. rated current -
630 Ampere
Number of poles -
3
Short-circuit breaking capacity (Icw) -
28 kiloampere
Width -
250 Millimetre
With cover -
ABB

Availability On Request

£152.66
