2CPX041742R9999

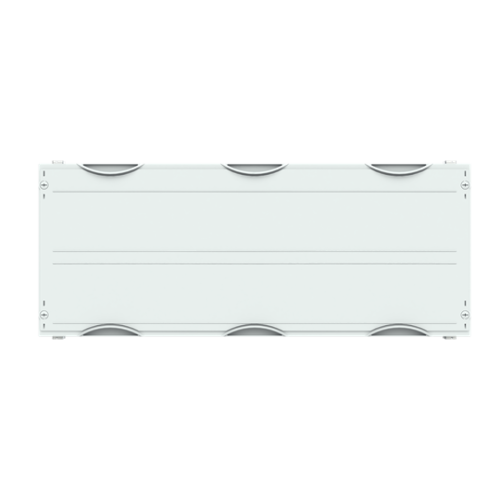

MBS327 Busbar system horizontal 300 mm x 750 mm x 225 mm , 000

Manufacturer's No: 41742     Manufacturer: ABB
MBS327 Busbar system horizontal 300 mm x 750 mm x 225 mm , 000

Availability On Request

£199.40
  • MBS327 Busbar system horizontal
  • Interior fitting module, CombiLine
  • Modular distribution panel (not assembled)
  • Grid unit: 2 GU = 300 mm
  • Panel width: 750 mm
  • 72 Space units
  • Busbar alignment: horizontal
  • Busbar holders: ZX151
  • Busbar center distance: 60 mm
  • Maximum 3 Cu busbars (must be ordered separately)

Read more

  • Rated current: 630 A
  • Covers made of Plastic, RAL 7035
  • 90 degree press and turn closure
  • Design of the cover: Closed
  • Usable as of cabinet depth of 215 mm


Product

Manufacturer Material ID -
41742
Net Weight -
3.12kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
60 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
225 Millimetre
Height -
300 Millimetre
Max. rated current -
630 Ampere
Number of poles -
3
Short-circuit breaking capacity (Icw) -
28 kiloampere
Width -
750 Millimetre
With cover -
ABB

Availability On Request

£199.40
