2CPX041744R9999

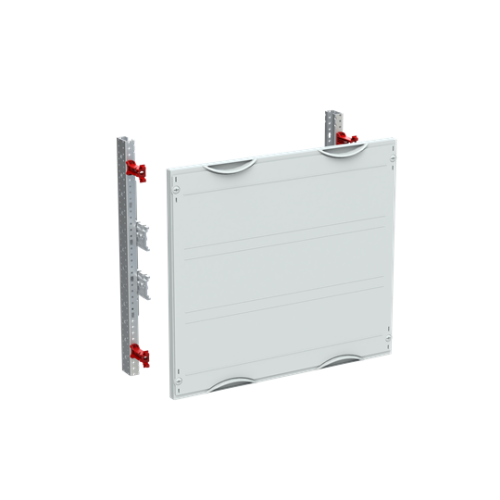

MBS231 Busbar system horizontal 450 mm x 500 mm x 275 mm , 00

Manufacturer's No: 41744     Manufacturer: ABB
MBS231 Busbar system horizontal 450 mm x 500 mm x 275 mm , 00

Availability On Request

£187.10
  • MBS231 Busbar system horizontal
  • Interior fitting module, CombiLine
  • Modular distribution panel not assembled
  • Grid unit 3 GU = 450 mm
  • Panel width 500 mm
  • 72 Space units
  • Busbar alignment: horizontal
  • Busbar holders ZX520
  • Busbar center distance: 100 mm
  • Maximum 3 Cu busbars (must be ordered separately)

Read more

  • Rated current maximum 850 A
  • Plastic covers with 90-degree press and turn closure
  • RAL 7035 color
  • Cover design: Closed
  • Usable as of cabinet depth of 275 mm


Product

Manufacturer Material ID -
41744
Net Weight -
2.88kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
100 Millimetre
Busbar height -
40 Millimetre
Busbar position -
Centre central
Busbar thickness -
10 Millimetre
Depth -
275 Millimetre
Height -
450 Millimetre
Max. rated current -
850 Ampere
Number of poles -
3
Short-circuit breaking capacity (Icw) -
25 kiloampere
Width -
500 Millimetre
With cover -
ABB
