2CPX041748R9999

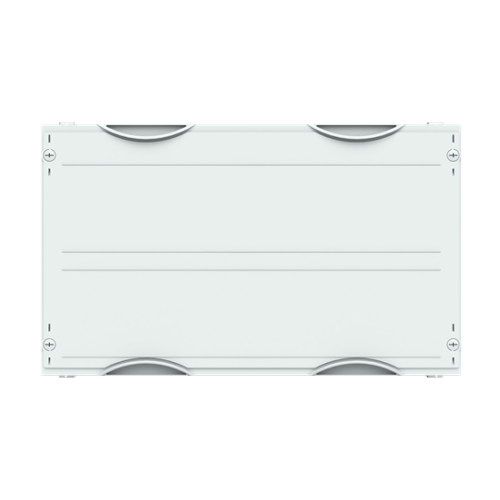

MBN274 N/PE busbar and terminals 300 mm x 500 mm x 200 mm , 1 , 000

Manufacturer's No: 41748     Manufacturer: ABB
MBN274 N/PE busbar and terminals 300 mm x 500 mm x 200 mm , 1 , 000

Availability On Request

£135.01
  • MBN274 N/PE busbar and terminals
  • Interior fitting module for N/PE busbar and terminals
  • Modular distribution panel
  • Dimensions: 300 mm x 500 mm x 200 mm
  • Grid unit: 2 GU = 300 mm
  • Panel width: 500 mm
  • Stepless adjustable via mounting bracket
  • Usable depth: 90 mm up to 145 mm
  • Usable width: 438 mm
  • For 2-pole busbar system

Read more

  • Busbar alignment: horizontal
  • Busbar holders: ZX518 (for maximum 2 Cu busbars, must be ordered separately)
  • Rated current maximum: 440 A
  • Covers made of plastic, RAL 7035
  • 90-degree press and turn closure
  • Design of the cover: Closed
  • Usable as of the cabinet depth of 200 mm


Product

Manufacturer Material ID -
41748
Net Weight -
1.98kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
300 Millimetre
Max. rated current -
440 Ampere
Number of poles -
2
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
500 Millimetre
With cover -
ABB

Availability On Request

£135.01
