2CPX041754R9999

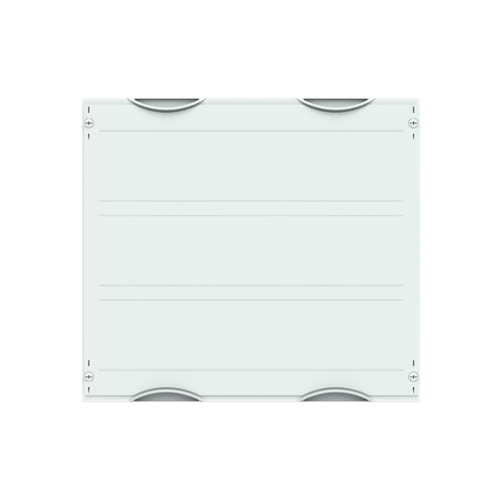

MBN275 N/PE busbar and terminals 450 mm x 500 mm x 200 mm , 2 , 00

Manufacturer's No: 41754     Manufacturer: ABB
MBN275 N/PE busbar and terminals 450 mm x 500 mm x 200 mm , 2 , 00

Availability On Request

£157.10
  • MBN275 N/PE busbar and terminals
  • Interior fitting module for N/PE busbar and terminals
  • Modular distribution panel
  • Dimensions: 450 mm x 500 mm x 200 mm
  • Grid unit: 3 GU = 450 mm
  • Panel width: 2 = 500 mm
  • Stepless adjustable mounting bracket
  • Usable depth: 90 mm to 145 mm
  • Usable width: 438 mm
  • For 2-pole busbar system

Read more

  • Busbar alignment: horizontal
  • Busbar holders ZX518 included
  • Maximum 2 Cu busbars (must be ordered separately)
  • Maximum rated current: 440 A
  • Plastic covers with 90-degree press and turn closure
  • RAL 7035 color
  • Closed cover design
  • Usable with cabinet depth of 200 mm or more


Product

Manufacturer Material ID -
41754
Net Weight -
2.64kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
450 Millimetre
Max. rated current -
440 Ampere
Number of poles -
2
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
500 Millimetre
With cover -
