2CPX041756R9999

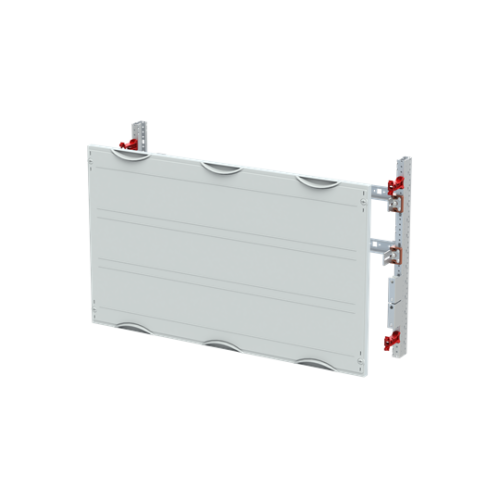

MBN375 N/PE busbar and terminals 450 mm x 750 mm x 200 mm , 2 , 00

Manufacturer's No: 41756     Manufacturer: ABB
MBN375 N/PE busbar and terminals 450 mm x 750 mm x 200 mm , 2 , 00

Availability On Request

£225.93
  • MBN375 N/PE busbar and terminals
  • Interior fitting module for Modular distribution panel
  • Dimensions: 450 mm x 750 mm x 200 mm
  • Grid unit: 3 GU = 450 mm
  • Panel width: 750 mm
  • 108 Space units
  • Stepless adjustable mounting bracket
  • Usable depth: 90 mm to 145 mm
  • Usable width: 688 mm
  • For 2-pole busbar system

Read more

  • Busbar alignment: horizontal
  • Busbar holders: ZX518 (for max 2 Cu busbars, to be ordered separately)
  • Rated current: max 440 A
  • Covers made of Plastic, RAL 7035
  • 90-degree press and turn closure
  • Design of the cover: Closed
  • Usable for cabinet depth of 200 mm


Product

Manufacturer Material ID -
41756
Net Weight -
3.88kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
40 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
5 Millimetre
Depth -
200 Millimetre
Height -
450 Millimetre
Max. rated current -
440 Ampere
Number of poles -
2
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
750 Millimetre
With cover -
ABB

Availability On Request

£225.93
