2CPX041760R9999

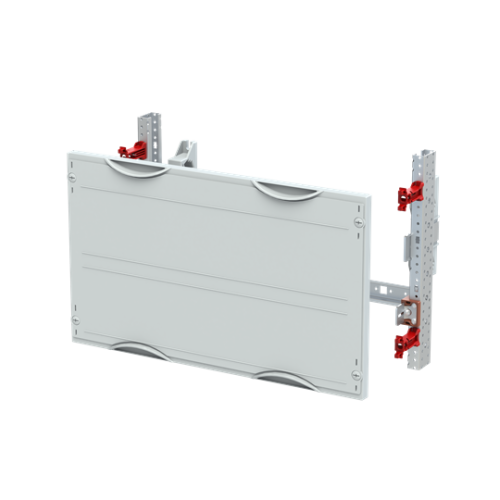

MBN262 N/PE busbar and terminals 300 mm x 500 mm x 260 mm , 1 , 000

Manufacturer's No: 41760     Manufacturer: ABB
MBN262 N/PE busbar and terminals 300 mm x 500 mm x 260 mm , 1 , 000

Availability Back Order

£111.17
  • MBN262 N/PE busbar and terminals
  • Interior fitting module for N/PE busbar and terminals
  • Modular distribution panel (not assembled)
  • Grid unit: 2 GU = 300 mm
  • Panel width: 500 mm
  • 48 Space units
  • Stepless adjustable via mounting bracket
  • Usable depth: 90 mm to 145 mm
  • Usable width: 438 mm
  • For 2-pole busbar system

Read more

  • Busbar alignment: horizontal
  • Busbar holders: ZX149 (for maximum 2 Cu busbars, must be ordered separately)
  • Rated current: maximum 630 A
  • Covers made of plastic, RAL 7035
  • 90-degree press and turn closure
  • Design of the cover: Closed
  • Usable as of cabinet depth of 275 mm


Product

Manufacturer Material ID -
41760
Net Weight -
2.42kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
92 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
10 Millimetre
Depth -
260 Millimetre
Height -
300 Millimetre
Max. rated current -
630 Ampere
Number of poles -
2
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
500 Millimetre
With cover -
ABB

Availability Back Order

£111.17
