2CPX041762R9999

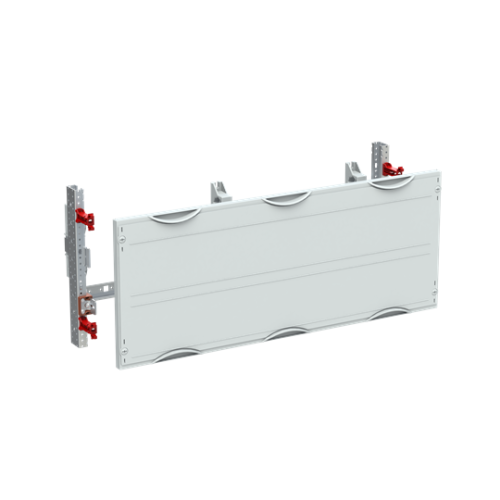

MBN362 N/PE busbar and terminals 300 mm x 750 mm x 260 mm , 1 , 000

Manufacturer's No: 41762     Manufacturer: ABB
MBN362 N/PE busbar and terminals 300 mm x 750 mm x 260 mm , 1 , 000

Availability On Request

£149.13
  • MBN362 N/PE busbar and terminals
  • Interior fitting module for N/PE busbar and terminals
  • Modular distribution panel
  • Dimensions: 300 mm x 750 mm x 260 mm
  • Grid unit: 2 GU = 300 mm
  • Panel width: 750 mm
  • 72 Space units
  • Adjustable depth: 90 mm to 145 mm
  • Usable width: 688 mm
  • For 2-pole busbar system

Read more

  • Busbar alignment: horizontal
  • Maximum 2 Cu busbars
  • Rated current: 630 A
  • Plastic covers with 90-degree press and turn closure
  • Cover design: Closed
  • Usable with cabinet depth of 275 mm


Product

Manufacturer Material ID -
41762
Net Weight -
2.99kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Busbar distance -
92 Millimetre
Busbar height -
30 Millimetre
Busbar position -
Centre central
Busbar thickness -
10 Millimetre
Depth -
260 Millimetre
Height -
300 Millimetre
Max. rated current -
630 Ampere
Number of poles -
2
Short-circuit breaking capacity (Icw) -
20 kiloampere
Width -
750 Millimetre
With cover -
ABB

Availability On Request

£149.13
