2CPX041793R9999

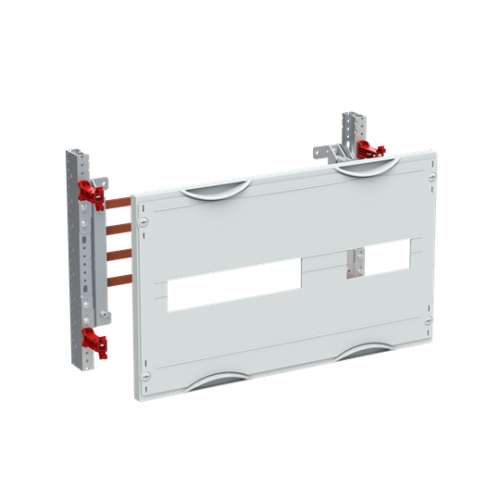

MBH250 Busbar system 40 mm for S700 300 mm x 500 mm x 200 mm , 000

Manufacturer's No: 41793     Manufacturer: ABB
MBH250 Busbar system 40 mm for S700 300 mm x 500 mm x 200 mm , 000

Availability On Request

£163.36
  • Busbar system for S700
  • Interior fitting module for CombiLine
  • Modular distribution panel
  • Grid unit: 2 GU = 300 mm
  • Panel width: 500 mm
  • Usable width: 210 mm
  • Suitable for 4-pole busbar system
  • Busbar alignment: horizontal
  • Busbar center distance: 40 mm
  • Maximum 4 Cu busbars

Read more

  • Rated current: 250 A
  • Plastic covers with 90-degree press and turn closure
  • RAL 7035 color
  • Cover design: with cut-out
  • Usable for cabinet depth of 200 mm


Product

Manufacturer Material ID -
41793
Net Weight -
1.89kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Depth -
200 Millimetre
Height -
300 Millimetre
Number of poles -
4
Number of switches -
0
Plastic cover plate -
Rated operation current -
250 Ampere
Width -
500 Millimetre
With cover -
ABB

Availability On Request

£163.36
