2CPX041844R9999

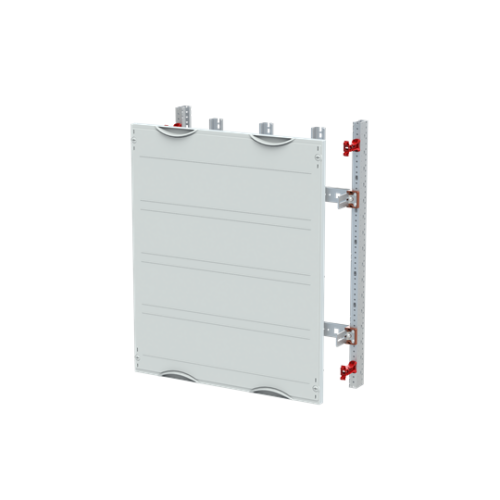

MBK214 Vertical terminals 600 mm x 500 mm x 200 mm , 2 , 0

Manufacturer's No: 41844     Manufacturer: ABB
MBK214 Vertical terminals 600 mm x 500 mm x 200 mm , 2 , 0

Availability On Request

£231.21
  • Vertical terminal dimensions: 600 mm x 500 mm x 200 mm
  • Interior fitting module for Vertical terminals
  • Modular distribution panel (unassembled)
  • Grid unit: 4 GU = 600 mm
  • Panel width: 500 mm
  • 96 Space units
  • DIN rail: 35 x 15 mm with perforation for wire holders
  • Stepless adjustable via mounting bracket
  • Usable depth: 66 mm to 113 mm
  • Usable height: 591 mm

Read more

  • Plastic covers with 90-degree press and turn closure
  • RAL 7035 color
  • Cover design: Closed
  • Usable with cabinet depth of 200 mm or more


Product

Manufacturer Material ID -
41844
Net Weight -
9.14kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Number of poles -
-
Number of clamp positions per pole -
-
Conductor cross section flexible (fine-strand) with cable end sleeve -
- Square millimetre
Conductor cross section solid (solid, stranded) -
- Square millimetre
Depth -
200 Millimetre
Height -
600 Millimetre
Max. rated current -
850 Ampere
Width -
500 Millimetre
ABB

Availability On Request

£231.21
