2CPX041845R9999

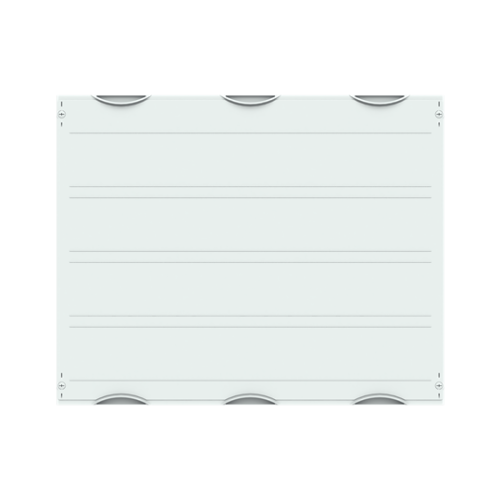

MBK314 Vertical terminals 600 mm x 750 mm x 200 mm , 3 , 0

Manufacturer's No: 41845     Manufacturer: ABB
MBK314 Vertical terminals 600 mm x 750 mm x 200 mm , 3 , 0

Availability On Request

£312.38
  • MBK314 Vertical Terminal
    • Dimensions: 600 mm x 750 mm x 200 mm
    • Interior fitting module
    • CombiLine Modular distribution panel
    • Grid unit: 4 GU = 600 mm
    • Panel width: 3 = 750 mm
    • 144 Space units
    • Assembled with DIN rail 35 x 15 mm with perforation for wire holders
    • Stepless adjustable via mounting bracket
    • Usable depth: 66 mm up to 113 mm
    • Usable height: 591 mm
    • Covers made of plastic
    • 90-degree press and turn closure
    • RAL 7035 color
    • Design of the cover: Closed
    • Usable as of the cabinet depth of 200 mm


Product

Manufacturer Material ID -
41845
Net Weight -
15.89kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Number of poles -
-
Number of clamp positions per pole -
-
Conductor cross section flexible (fine-strand) with cable end sleeve -
- Square millimetre
Conductor cross section solid (solid, stranded) -
- Square millimetre
Depth -
200 Millimetre
Height -
600 Millimetre
Max. rated current -
850 Ampere
Width -
750 Millimetre
ABB

Availability On Request

£312.38
