2CPX042167R9999

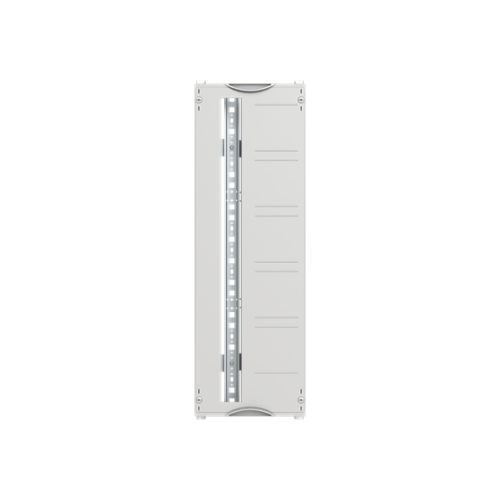

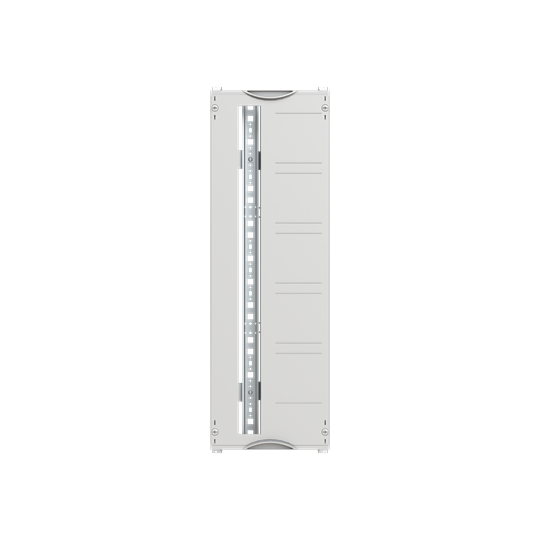

MBC105VS SMISSLINE TP base unit vertikal 750 mm x 250 mm x 275 mm , 1 , 1

Manufacturer's No: 42167     Manufacturer: ABB
MBC105VS SMISSLINE TP base unit vertikal 750 mm x 250 mm x 275 mm , 1 , 1

Availability On Request

£301.68
  • MBC105VS SMISSLINE TP base unit vertical
  • Dimensions: 750 mm x 250 mm x 275 mm
  • Interior fitting module: CombiLine
  • Modular distribution panel not assembled
  • Grid unit: 5 GU = 750 mm
  • Panel width: 1 = 250 mm
  • 60 Space units
  • Assembled with DIN rail 35 x 15 mm with perforation for wire holders
  • Socket base length x 38 space units
  • Covers made of plastic

Read more

  • 90-degree press and turn closure
  • RAL 7035 color
  • Cover design: with cut-out
  • Usable for cabinet depth of 275 mm


Product

Manufacturer Material ID -
42167
Net Weight -
3.29kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Built-in depth -
275 Millimetre
Depth -
275 Millimetre
Height -
750 Millimetre
Recess depth -
275 Millimetre
Width -
250 Millimetre
With cover -
With mounting rail -
ABB

Availability On Request

£301.68
