2CMA166528R1000

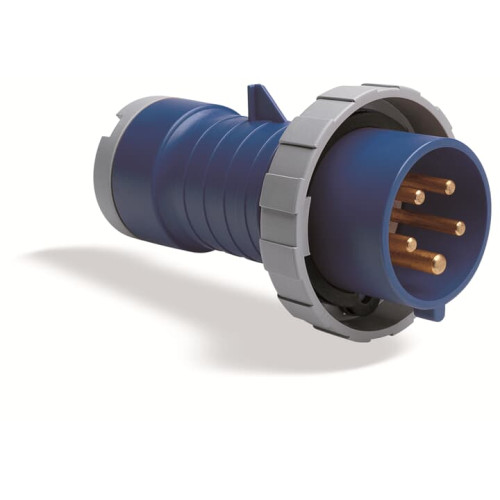

Plug, earthing sleeve position 9h, rated current 32A, IP67 watertight, 3-poles+neutral+earth, frequency 50-60 Hz, color code Blue

Manufacturer's No: 432P9W     Manufacturer: ABB
Plug, earthing sleeve position 9h, rated current 32A, IP67 watertight, 3-poles+neutral+earth, frequency 50-60 Hz, color code Blue

Availability Back Order

POA
  • Plug type: Earthing sleeve position 9h
  • Rated current: 32A
  • IP rating: IP67 (watertight)
  • Configuration: 3-poles + neutral + earth
  • Frequency: 50-60 Hz
  • Color code: Blue


Product

Manufacturer Material ID -
432P9W
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
CZ
Minimum Order Quantity -
1
UNSPSC -
39121402

Technical Specification

RAL-number -
7001
Cable entry -
Anti-kink sleeve
Amperage acc. UL/CSA (for UL-version) -
32 Ampere
Degree of protection (IP) -
IP67
RAL number -
7001
Number of poles -
5
Material -
Plastic
IEC-amperage -
32 Ampere
Connection system -
Screwed terminal
Angle of plug -
Straight
Degree of protection (IP rating) -
IP67
Clock hour position -
9 Hour
Identification colour -
Blue
Voltage acc. EN 60309-2 -
230 V (50+60 Hz) blue
ABB

Availability Back Order

POA
