2CPX045616R9999

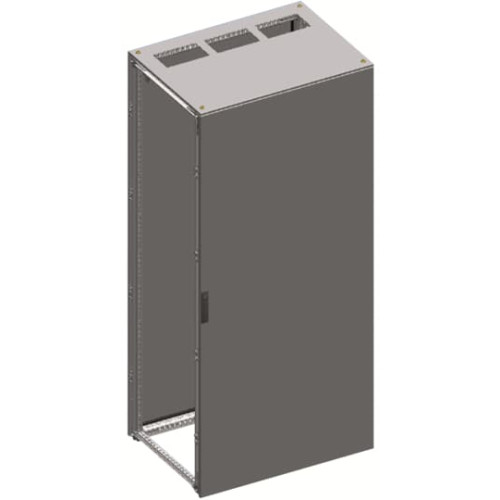

1/10R4 Switchgear cabinet, Field width: 1, Rows: 14, 2213 mm x 364 mm x 425 mm, Grounded (Class I), Maximum IP54

Manufacturer's No: 45616     Manufacturer: ABB
1/10R4 Switchgear cabinet, Field width: 1, Rows: 14, 2213 mm x 364 mm x 425 mm, Grounded (Class I), Maximum IP54

Availability Back Order

£1,191.33
  • Switchgear cabinet from the TriLine series
  • Dimensions: 2213 mm x 364 mm x 425 mm
  • Grounded (Class I) with maximum IP54 protection
  • Expansion options: Lateral and bottom
  • Class of protection I (earthed) with IK code 10
  • Complies with standards: EN 61439-1, EN 61439-2
  • Powder-coated in RAL 7035
  • Single-leaf door with standard locking mechanism
  • Rear wall made of sheet steel
  • Cable entry on top via pre-cut flange opening

Read more

  • Grid unit: 14 GU
  • Overall height: 10 space units
  • Panel width: 1 space unit
  • Cabinet depth: 4 space units
  • Suitable for internal use


Product

Manufacturer Material ID -
45616
Net Weight -
64.60kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Built-in depth -
- Millimetre
Plate thickness cabinet -
- Millimetre
RAL-number -
7035
Type of cover -
Door
Material housing -
Steel
Impact strength -
Other
Degree of protection (IP) -
Other
Nominal current (In) -
6300 Ampere
Plate thickness door/cover -
1.5 Millimetre
Degree of protection (NEMA) -
Other
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
Other
Depth -
425 Millimetre
Extension possible -
Height -
2213 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK10
Internal depth -
421 Millimetre
Mounting method -
Floor installation
Number of conduit inlets -
49
Number of modules -
168
Number of openings for flange plates -
1
Number of rows -
14
Protection class -
I
RAL number -
7035
Recess depth -
313 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
Single
Width -
364 Millimetre
Width in number of modular spacings -
12
With lock -
ABB
