2CPX045667R9999

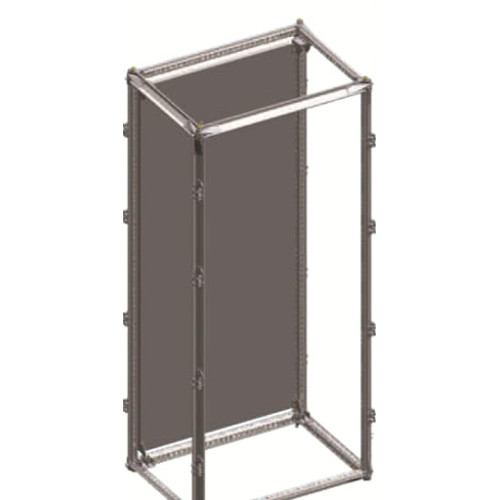

2/10RG6 Switchgear cabinet, Field width: 2, Rows: 14, 2213 mm x 614 mm x 625 mm, Grounded (Class I), Maximum IP54

Manufacturer's No: 45667     Manufacturer: ABB
2/10RG6 Switchgear cabinet, Field width: 2, Rows: 14, 2213 mm x 614 mm x 625 mm, Grounded (Class I), Maximum IP54

Availability Back Order

£891.05
  • Switchgear cabinet from TriLine series
  • Dimensions: 2213 mm x 614 mm x 625 mm
  • Grounded (Class I) with maximum IP54 protection
  • Suitable for internal use
  • Cabinet frame with rear wall, door, and bottom sheet steel plate
  • Galvanised profile with class of protection I (earthed)
  • Complies with standards: EN 61439-1, EN 61439-2
  • IK code 10 for impact resistance
  • Powder-coated in RAL 7035
  • Enclosure made of steel without a door

Read more

  • Rear wall constructed from sheet steel
  • Grid unit: 14 GU
  • Overall height: 10 space units
  • Panel width: 2 space units
  • Cabinet depth: 8 space units
  • Total space units: 336


Product

Manufacturer Material ID -
45667
Net Weight -
55.00kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Built-in depth -
- Millimetre
Plate thickness cabinet -
- Millimetre
RAL-number -
7035
Type of cover -
Door
Material housing -
Steel
Impact strength -
Other
Degree of protection (IP) -
Other
Nominal current (In) -
6300 Ampere
Plate thickness door/cover -
1.5 Millimetre
Degree of protection (NEMA) -
Other
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
Other
Depth -
625 Millimetre
Extension possible -
Height -
2213 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK10
Internal depth -
621 Millimetre
Mounting method -
Floor installation
Number of conduit inlets -
98
Number of modules -
336
Number of openings for flange plates -
2
Number of rows -
14
Protection class -
I
RAL number -
7035
Recess depth -
513 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
None
Width -
614 Millimetre
Width in number of modular spacings -
24
ABB

Availability Back Order

£891.05
