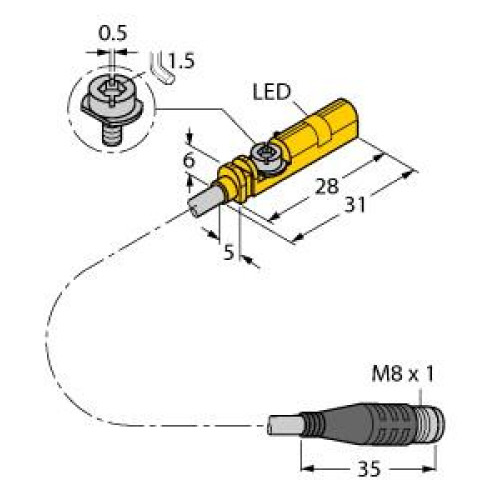

Magnetic Field Sensor, For Pneumatic Cylinders

Manufacturer's No: BIM-UNT-AP6X-0.3-PSG3S/3GD     Manufacturer: Turck Banner
Magnetic Field Sensor, For Pneumatic Cylinders

Availability On Request

POA
  • Magnetic Field Sensor for Pneumatic Cylinders
  • Operating Voltage: 10-30 VDC
  • Cable Length: 0.3 m
  • Suitable for T-groove cylinders without mounting accessories
  • Optional accessories available for mounting on other cylinder designs
  • One-hand mounting capability
  • Magneto-resistive sensor with DC 3-wire
  • NO contact with PNP output
  • Pigtail with male end, M8 x 1
  • ATEX Category II 3 G, Ex Zone 2

Read more

  • ATEX Category II 3 D, Ex Zone 22


Product

Manufacturer Material ID -
BIM-UNT-AP6X-0.3-PSG3S/3GD
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CH
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Cross-/short circuit identification possible -
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height of sensor -
6 Millimetre
Housing material -
Plastic
Length of sensor -
28 Millimetre
Performance level acc. to EN ISO 13849-1 -
None
Rated supply voltage at DC -
10 Volt
Type of actuation -
Magnet
Type of electric connection -
Cable with connector
Type of switching output -
PNP
Voltage type -
DC
Width sensor -
5 Millimetre
