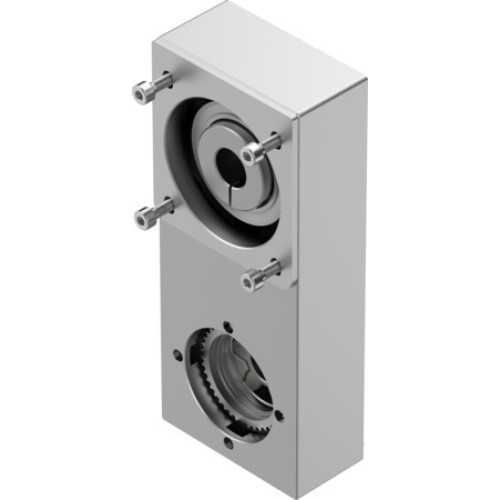

EAMM-U-65-T42-60P-87 Parallel kit

Manufacturer's No: EAMM-U-65-T42-60P-87     Manufacturer: Festo
EAMM-U-65-T42-60P-87 Parallel kit

Availability Back Order

£132.27
  • Parallel kit EAMM-U-65-T42-60P-87
  • Size: 65
  • Centre-to-centre distance: 87 mm
  • Gear unit ratio: 1:1
  • Max. rotational speed: 3000 RPM
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0 - 95%
  • Degree of protection: IP40
  • Ambient temperature: 0°C to 50°C

Read more

  • Mass moment of inertia: 41.2 kg·m²
  • Frictional torque independent of load: 0.22 Nm
  • Transmittable torque: 3 Nm
  • Product weight: 583 g
  • Interface code for actuator: T42
  • Interface code for motor in: 60P
  • RoHS-compliant materials


Product

Manufacturer Material ID -
EAMM-U-65-T42-60P-87
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
84839089
Country of Origin -
CN
UNSPSC -
31171519
