4AC32140

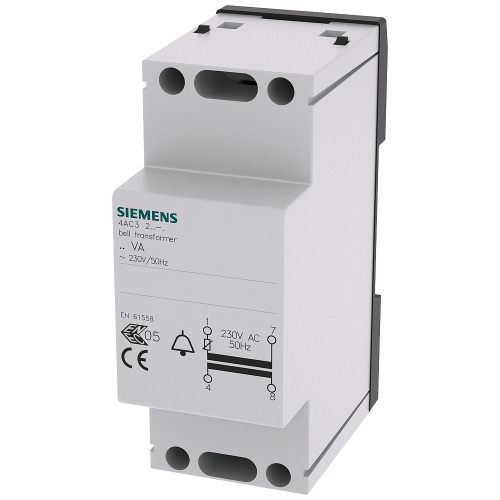

Bell transformer, 14VA Primary 230-240 V AC, 50 Hz, secondary 8 V, 12V, 24V AC With PTC fuse, 2MW

Manufacturer's No: 4AC3214-0     Manufacturer: Siemens
Bell transformer, 14VA Primary 230-240 V AC, 50 Hz, secondary 8 V, 12V, 24V AC With PTC fuse, 2MW

Availability On Request

£61.82
  • Bell transformer
  • Input: 230-240 V AC, 50 Hz
  • Output: 8 V, 12 V, 24 V AC
  • Power rating: 14 VA
  • Includes PTC fuse
  • Secondary winding with multiple voltage options


Product

Manufacturer Material ID -
4AC3214-0
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

Max. output current -
2 Ampere
Height -
64 Millimetre
Length -
90 Millimetre
Max. output power -
14 Watt
Max. power loss -
10.5 Watt
Maximum output current -
2 Ampere
Modular version -
Primary voltage -
230 Volt
Secondary amperage 1 -
2 Ampere
Secondary amperage 2 -
1.3 Ampere
Secondary amperage 3 -
0.6 Ampere
Secondary voltage 1 -
8 Volt
Secondary voltage 2 -
12 Volt
Secondary voltage 3 -
24 Volt
Short-circuit protected -
Temperature protection -
Type of transformer -
Standard bell ringing transformer
Width -
36 Millimetre
Width in number of modular spacings -
2

Availability On Request

£61.82
