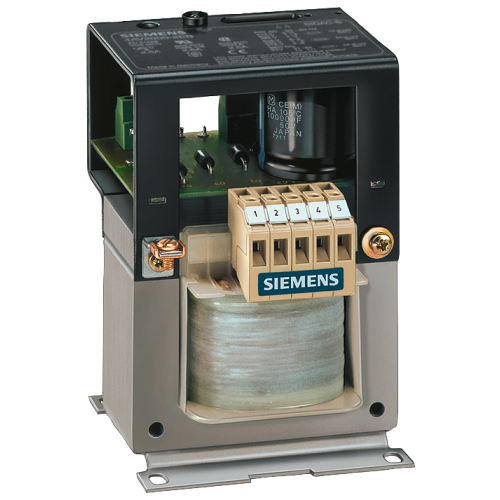

4AV20012EB000A

POWER SUPPLY; PHASES:1; PN(KW):0,06; UPRI(V):400-230(240)-115(120); USEC(V DC):24; ISEC(A DC):2,5/3

Manufacturer's No: 4AV2001-2EB00-0A     Manufacturer: Siemens
POWER SUPPLY; PHASES:1; PN(KW):0,06; UPRI(V):400-230(240)-115(120); USEC(V DC):24; ISEC(A DC):2,5/3

Availability On Request

£296.00
  • Power Supply
  • Phases: 1
  • Power Rating: 0.06 kW
  • Input Voltage: 400-230(240)-115(120) VAC
  • Output Voltage: 24 VDC
  • Output Current: 2.5/3 A (60/40% CEL)
  • Frequency: 50-60 Hz
  • Vector Group/Shielding: II0/0
  • Protection Class: I
  • Temperature Class/Insulation Class: 60/B

Read more

  • Efficiency: 5%
  • Enclosure Rating: IP00
  • Type of Terminals: Screw Connection
  • Installation: Screws/Mounting Rails
  • Standards: EN 61558-2-6, EN61131-2, UL/CSA-Recognized
  • Safety Feature: Safety Isolating Transformer


Product

Manufacturer Material ID -
4AV2001-2EB00-0A
Net Weight -
2.38kg

Additional Product Information

Commodity Code -
85043180
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121002

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 1 -
- Volt
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 1 -
- Ampere
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in width -
84 Millimetre
Degree of protection (IP) -
IP00
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP00
Depth -
100 Millimetre
Height -
142 Millimetre
Max. output current 1 -
2.5 Ampere
Rail mounting possible -
Recess width -
84 Millimetre
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
84 Millimetre

Availability On Request

£296.00
