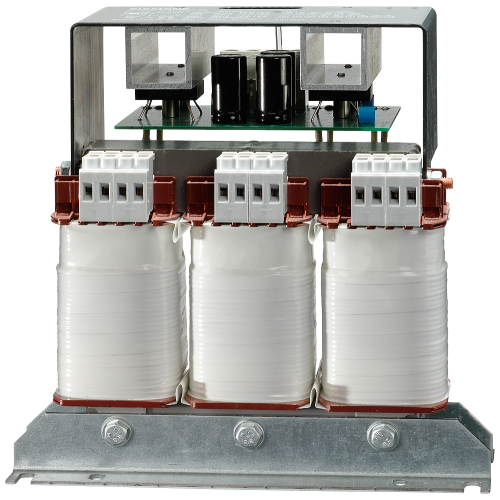

4AV32022EB000A

POWER SUPPLY; PHASES:3; PN(KW):0,432; UPRI(V):575(600)-500-460(480)- 400(415)-230(240)-200; USEC(V D

Manufacturer's No: 4AV3202-2EB00-0A     Manufacturer: Siemens
POWER SUPPLY; PHASES:3; PN(KW):0,432; UPRI(V):575(600)-500-460(480)- 400(415)-230(240)-200; USEC(V D

Availability On Request

£773.00
  • Power Supply: 3 Phases
  • Power Rating: 0.432 kW
  • Input Voltage: 575V (600V), 500V, 460V (480V), 400V (415V), 230V (240V), 200V
  • Output Voltage: 24V DC
  • Output Current: 18A / 21.5A (60A / 40A CEL)
  • Frequency: 50Hz to 60Hz
  • Vector Group / Shielding: II0 / 0
  • Protection Class: I
  • Temperature Class / Insulation Class: 60°C / B
  • Efficiency: 4.2%

Read more

  • Enclosure Rating: IP00
  • Type of Terminals: Screw Connection
  • Installation: Screw Mount
  • Standards: EN 61558-2-6, EN61131-2, UL/CSA-Recognized
  • Safety Feature: Safety Isolating Transformer


Product

Manufacturer Material ID -
4AV3202-2EB00-0A
Net Weight -
8.41kg

Additional Product Information

Commodity Code -
85043180
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
39121002

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 1 -
- Volt
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 1 -
- Ampere
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in width -
216 Millimetre
Degree of protection (IP) -
IP00
Rail mounting possible -
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP00
Depth -
115 Millimetre
Height -
220 Millimetre
Max. output current 1 -
18 Ampere
Recess width -
216 Millimetre
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
216 Millimetre

Availability On Request

£773.00
