4AV41032EB000A

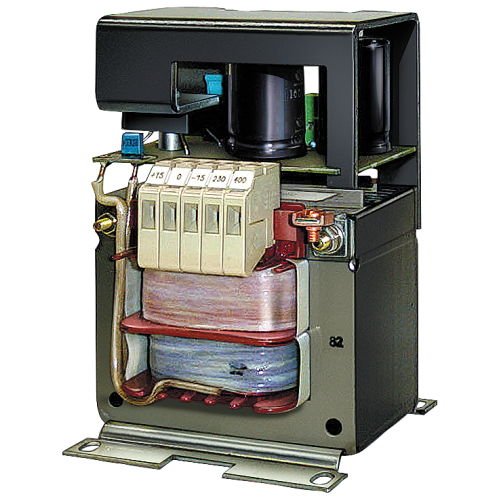

POWER SUPPLY; PHASES:1; PN(KW):0,072; UPRI(V):400-230+/-15; USEC(V DC):24; ISEC(A DC):3; F(HZ):50...

Manufacturer's No: 4AV4103-2EB00-0A     Manufacturer: Siemens
POWER SUPPLY; PHASES:1; PN(KW):0,072; UPRI(V):400-230+/-15; USEC(V DC):24; ISEC(A DC):3; F(HZ):50...

Availability On Request

£234.00
  • Power Supply: 0.072 kW
  • Phases: 1
  • Input Voltage: 400-230 VAC +/- 15%
  • Output Voltage: 24 VDC
  • Output Current: 3 A
  • Frequency: 50-60 Hz
  • Vector Group/Shield Winding: II0/0
  • Protection Class: I
  • Temperature Class/Insulation Class: 40/B
  • Efficiency: 5%

Read more

  • Enclosure: IP00
  • Type of Terminals: Screw Connection
  • Installation: Screws/Mounting Rails
  • Safety Standards: EN 61558, EN61131-2


Product

Manufacturer Material ID -
4AV4103-2EB00-0A
Net Weight -
2.43kg

Additional Product Information

Commodity Code -
85043180
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121002

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 1 -
- Volt
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 1 -
- Ampere
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in width -
84 Millimetre
Degree of protection (IP) -
IP00
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP00
Depth -
88 Millimetre
Height -
140 Millimetre
Max. output current 1 -
3 Ampere
Rail mounting possible -
Recess width -
84 Millimetre
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
84 Millimetre
