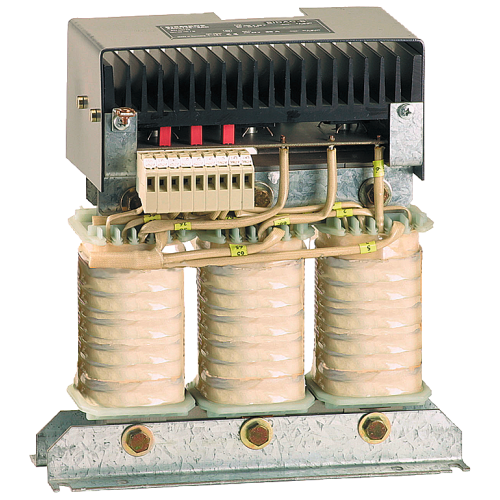

4AV51352EB000A

Power supply 3-ph. PN(kW) 0.84, Upri=400 V +/- 20, Usec (V DC): 24

Manufacturer's No: 4AV5135-2EB00-0A     Manufacturer: Siemens
Power supply 3-ph. PN(kW) 0.84, Upri=400 V +/- 20, Usec (V DC): 24

Availability On Request

POA
  • Power supply: 3-phase
  • Rated power (PN): 0.84 kW
  • Input voltage (UPRI): 400 V +/- 20
  • Output voltage (USEC): 24 V DC
  • Output current (ISEC): 35 A DC
  • Frequency (F): 50-60 Hz
  • Protection class: I
  • Insulation class: TA/ISOKL 40/B
  • Efficiency: 5%
  • Enclosure rating: IP00

Read more

  • Type of terminals: Screw connection
  • Installation: 4AV510
  • Compliance with standards: EN 60742, EN61131-2
  • Safety isolating transformer


Product

Manufacturer Material ID -
4AV5135-2EB00-0A
Net Weight -
14.50kg

Additional Product Information

Commodity Code -
85043180
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121002

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 1 -
- Volt
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 1 -
- Ampere
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in width -
266 Millimetre
Degree of protection (IP) -
IP00
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP00
Depth -
123 Millimetre
Height -
294 Millimetre
Max. output current 1 -
35 Ampere
Recess width -
266 Millimetre
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
266 Millimetre
