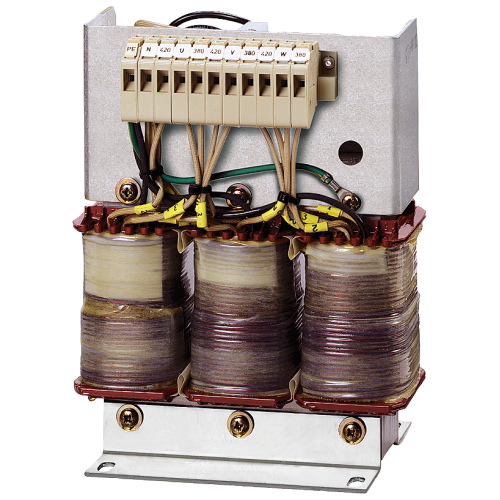

4AV96045CB002N

Power supply (unfiltered), 3-ph. PN(kW) 0.36, Upri=400 V, Usec (V DC): 30-27-24

Manufacturer's No: 4AV9604-5CB00-2N     Manufacturer: Siemens
Power supply (unfiltered), 3-ph. PN(kW) 0.36, Upri=400 V, Usec (V DC): 30-27-24

Availability On Request

POA
  • Power supply: 3-ph, unfiltered
  • Input voltage: 400 VAC +/- 5%
  • Output voltage: 30-27-24 VDC
  • Output power: 0.36 kW
  • Output current: 12 A DC
  • Frequency: 50-60 Hz
  • Vector group/shield winding: YNY6/1
  • Protection class: I
  • Insulation class: TA/ISOKL 50/B
  • Efficiency: 5%

Read more

  • Enclosure rating: IP00
  • Type of terminals: Screw/tab connection
  • Installation: Screw mount
  • Safety standard: EN 61558 Safety Isolating Transformer


Product

Manufacturer Material ID -
4AV9604-5CB00-2N
Net Weight -
6.90kg

Additional Product Information

Commodity Code -
85043180
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121002

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Nominal value output voltage 1 -
- Volt
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 1 -
- Ampere
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in width -
149 Millimetre
Type of electric connection -
Other
Degree of protection (IP) -
IP00
1st secondary output voltage -
30 Volt
2nd secondary output voltage -
30 Volt
3rd secondary output voltage -
30 Volt
Degree of protection (IP rating) -
IP00
Depth -
112 Millimetre
Height -
190 Millimetre
Max. output current 1 -
12 Ampere
Max. output current 2 -
12 Ampere
Max. output current 3 -
12 Ampere
Recess width -
149 Millimetre
Voltage type of supply voltage -
AC
Width -
149 Millimetre
