4EU24520EF004BA0

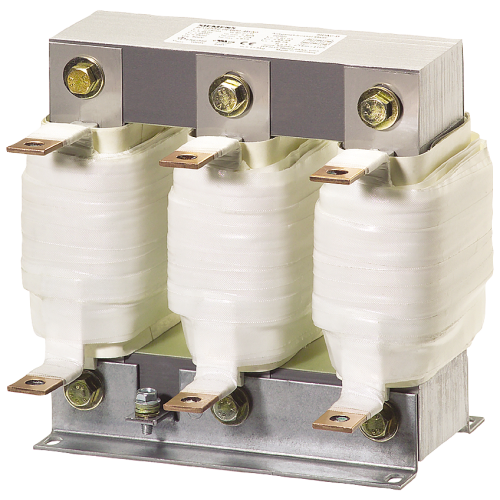

Output reactor; phases:3; UN1(V):500; Ithmax 1(A) / F1(HZ):72 /200

Manufacturer's No: 4EU2452-0EF00-4BA0     Manufacturer: Siemens
Output reactor; phases:3; UN1(V):500; Ithmax 1(A) / F1(HZ):72 /200

Availability On Request

£1,700.00
  • Output Choke
  • Phases: 3
  • Rated Voltage (UN1): 500V
  • Maximum Current (ITHMAX): 1A
  • Frequency (F1): 72Hz / 200Hz
  • Switching Frequency (F TAKT): 4kHz
  • Rated Current (ILN): 64.8A
  • Inductance (LN): 0.22mH
  • Leakage Inductance (UK): 7%
  • Ambient Temperature (TA): 40°C

Read more

  • Enclosure Protection: IP00
  • Type of Terminals: Flat-Type Terminal
  • Compliant with EN61558-2-20


Product

Manufacturer Material ID -
4EU2452-0EF00-4BA0
Net Weight -
13.15kg

Additional Product Information

Commodity Code -
85045095
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
32121702

Technical Specification

Max. rated current (Ith) at rated voltage DC -
- Ampere
Resonance frequency -
- Hertz
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Max. rated operation voltage Ue -
500 Volt
Number of poles, primary side -
3
Rated clock frequency -
4 kiloHertz
Rated current at AC -
64.8 Ampere
Rated inductance -
0.22 Millihenry
Rated operation frequency -
0 Hertz
Relative short circuit voltage -
6.9 Percentage
Suitable as commutation reactance coil -
Suitable as interference suppression reactance coil -
Suitable as net reactance coil -
Suitable as output reactance coil -

Availability On Request

£1,700.00
