4NC51232FC21

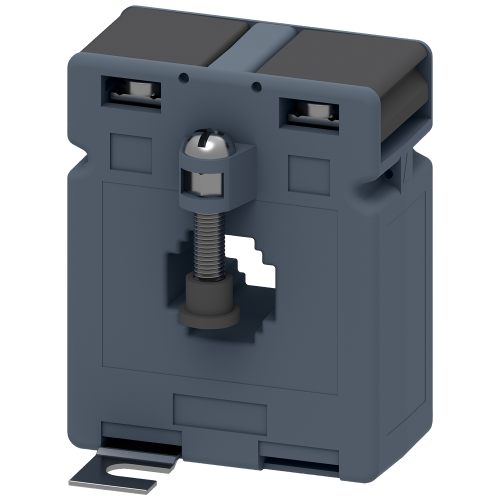

current transformer 250/5 A 2.5 VA CL 0.2s

Manufacturer's No: 4NC5123-2FC21     Manufacturer: Siemens
current transformer 250/5 A 2.5 VA CL 0.2s

View 3D

Availability Back Order

£59.52
  • Current Transformer
  • Ratio: 250/5 A
  • Accuracy Class: 0.2s
  • Rated Output: 2.5 VA

Accessories



Product

Manufacturer Material ID -
4NC5123-2FC21
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85043129
Country of Origin -
IN
RoHs Compliance -
Yes
UNSPSC -
39121032

Technical Specification

Accuracy class -
-
Height opening -
20 Millimetre
Primary rated current -
250 Ampere
Secondary connection -
Screw connection
Secondary rated apparent power -
2.5 Voltampere
Secondary rated current -
5 Ampere
Over current limiting factor -
FS 10
Model -
Attachable current transformer
Number of primary inputs -
1
Opening diameter -
19 Millimetre
Rated primary current -
250 Ampere
Rated secondary apparent power -
2.5 Voltampere
Rated secondary current -
5 Ampere
Width opening -
20 Millimetre
With shock protection -

Availability Back Order

£59.52
