506343

Magnetic safety switch 2 N/O, 1 signal contact N/O, 5-pin M12 connector, square design, IP67, operating distance 10 mm, height des

Manufacturer's No: PSEN ma1.4n-51/PSEN ma1.4-10mm/ 1unit     Manufacturer: Pilz
Magnetic safety switch 2 N/O, 1 signal contact N/O, 5-pin M12 connector, square design, IP67, operating distance 10 mm, height design 18 mm PU = 1 sensor with actuator.

Availability Back Order

£71.11
  • Magnetic safety switch with 2 normally open contacts
  • 1 normally open auxiliary contact
  • Equipped with a 5-pin M12 male connector
  • Features a square design with an LED indicator
  • IP67 rated for dust and water resistance
  • Operating distance of 10 mm
  • Height design of 18 mm

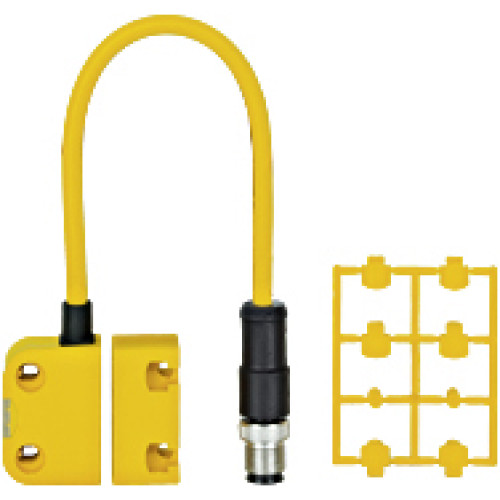

  • Package includes 1 sensor with actuator

Accessories



Product

Manufacturer Material ID -
PSEN ma1.4n-51/PSEN ma1.4-10mm/ 1unit
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
With status indication -
Number of semiconductor outputs with signalling function -
1
Number of protected contact energized outputs -
2
Type of electric connection -
Connector M8
Type of switching output -
Dry reed contact
Construction type housing -
Special construction
Protected switch distance OFF -
10 Millimetre
Protected switch distance ON -
22 Millimetre
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Performance level acc. to EN ISO 13849-1 -
Level e
Ambient temperature -
-10 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Switching distance -
0 Millimetre
Voltage type -
DC
Width sensor -
26.4 Millimetre
Pilz

Availability Back Order

£71.11
