506348

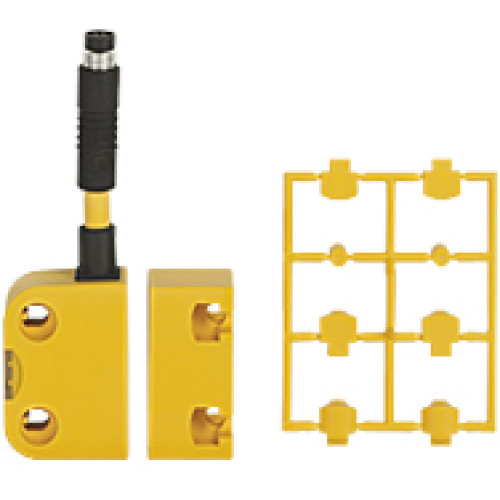

Magnetic safety switch 2 n/o 1 auxiliary contact n/o 8-pin M8 male connector with 50 mm pigtail LED

Manufacturer's No: PSEN ma1.4p-59/PSEN ma1.4-10 1unit     Manufacturer: Pilz
Magnetic safety switch 2 n/o 1 auxiliary contact n/o 8-pin M8 male connector with 50 mm pigtail LED

Availability Available to order

£58.71
  • Magnetic safety switch with 2 normally open (N/O) contacts
  • 1 auxiliary N/O contact
  • 8-pin M8 male connector with 50 mm pigtail
  • LED indicator
  • IP67 rated for dust and water resistance
  • Operating distance of 10 mm
  • Suitable for applications up to SIL 3/PL e/Cat. 4 safety levels
  • Square design from 2009
  • Packaging unit (PU) includes 1 sensor with actuator

Accessories



Product

Manufacturer Material ID -
PSEN ma1.4p-59/PSEN ma1.4-10 1unit
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
Number of protected contact energized outputs -
2
Type of electric connection -
Connector M8
Type of switching output -
Dry reed contact
Construction type housing -
Special construction
Mechanical mounting condition for sensor -
Not flat
Type of actuation -
Magnet
Performance level acc. to EN ISO 13849-1 -
Level e
Ambient temperature -
-10 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Switching distance -
0 Millimetre
Voltage type -
DC
Width sensor -
26.4 Millimetre
Pilz

Availability Available to order

£58.71
