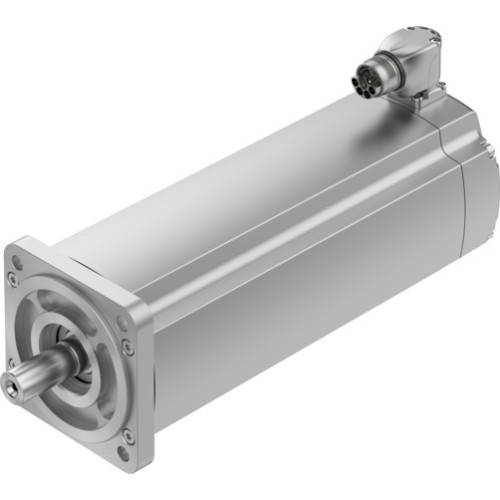

EMMT-AS-100-L-HS-RMB Servo motor

Manufacturer's No: EMMT-AS-100-L-HS-RMB     Manufacturer: Festo
EMMT-AS-100-L-HS-RMB Servo motor

Availability On Request

£1,642.85
  • Servo motor model: EMMT-AS-100-L-HS-RMB
  • Ambient temperature range: -15°C to 40°C (up to 80°C with derating of -2.25% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature range: -20°C to 70°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Max. winding temperature: 155°C
  • Temperature monitoring: Digital motor temperature transmission via EnDat® 2.2
  • Motor types: IM B5, IM V1, IM V3
  • Degree of protection: IP40 for motor shaft, IP65 for motor shaft with rotary shaft seal, IP67 for motor housing

Read more

  • Balance quality: G 2.5
  • Detent torque: <1.0% of peak torque
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Hybrid plug, M23x1 connector system, 15 connections/cores
  • Pollution degree: 2
  • Materials: RoHS-compliant, corrosion resistance class CRC: 0
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark, UKCA marking
  • Nominal operating voltage DC: 680 V
  • Number of pole pairs: 5
  • Torque specifications: Standstill torque: 10.4 Nm, Nominal torque: 6.6 Nm, Peak torque: 30.5 Nm
  • Speed specifications: Nominal rotary speed: 2700 RPM, Max. rotational speed: 4530 RPM, Max. mechanical speed: 13000 RPM
  • Power rating: 1870 W
  • Current specifications: Continuous stall current: 6.7 A, Nominal motor current: 4.3 A, Peak current: 28.6 A
  • Thermal specifications: Thermal resistance: 0.46 K/W, Thermal time constant: 71 minutes
  • Inertia and weight: Total mass moment of inertia: 8.06 kgcm², Product weight: 10100 g
  • Shaft load limits: Permissible axial shaft load: 200 N, Permissible radial shaft load: 1110 N
  • Rotor position sensor: Absolute multi-turn encoder, EQI 1331, 4096 detectable revolutions
  • Brake specifications: Holding torque: 18 Nm, Operating voltage DC: 24 V, Brake current consumption: 1 A, Power consumption: 24 W
  • Brake response times: Separation time: 80 ms, Closing time: 40 ms, Response delay: 5 ms
  • Brake performance: Max. brake no-load speed: 10000 RPM, Max. friction per braking process: 15000 J
  • Reliability: Mean time to failure: 190 years for rotor position sensor
  • Energy efficiency: ENEFF (CN) / Class 2


Product

Manufacturer Material ID -
EMMT-AS-100-L-HS-RMB
Net Weight -
10.94kg

Additional Product Information

Commodity Code -
85015220
Country of Origin -
BG
UNSPSC -
26101115
Festo

Availability On Request

£1,642.85
