540150

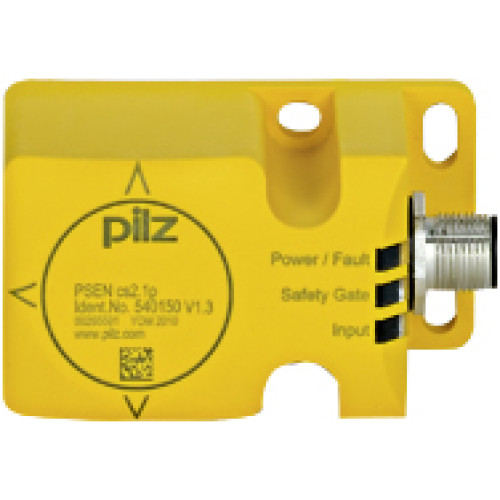

RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, four directions of actuation IP67, operating distance 21 mm,

Manufacturer's No: PSEN cs2.1p 1 switch     Manufacturer: Pilz
RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, four directions of actuation IP67, operating distance 21 mm, Sao = 15 mm, Sar = 40 mm, PU = 1 piece fully coded switch without act

Availability Back Order

£152.54
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M12 male connector
  • 4 actuation directions
  • IP67 rated for dust and water resistance
  • Typical operating distance: 21 mm
  • Sao (safe opening distance): 15 mm
  • Sar (safe closing distance): 40 mm
  • Fully coded switch with 1 piece
  • Maximum of 8 teach-in processes

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN cs2.1p 1 switch
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Connector M12
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
75 Millimetre
Length of sensor -
40 Millimetre
Width sensor -
40 Millimetre
Pilz

Availability Back Order

£152.54
