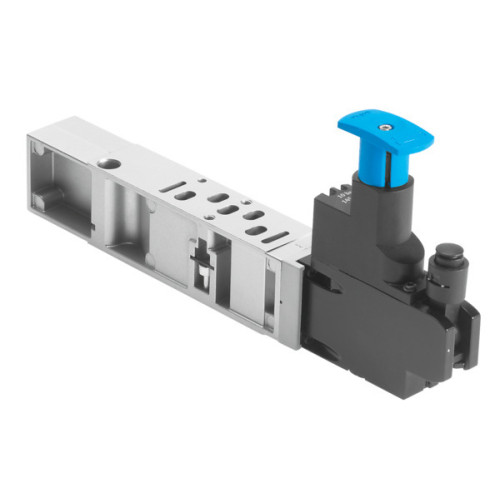

VABF-S4-2-R1C2-C-10 Regulator plate

Manufacturer's No: VABF-S4-2-R1C2-C-10     Manufacturer: Festo
VABF-S4-2-R1C2-C-10 Regulator plate

Availability Available to order

£155.08
  • Regulator plate model: VABF-S4-2-R1C2-C-10
  • Construction width: 18 mm
  • Based on standard: ISO 15407-2
  • Controller function: Output pressure constant
  • Controller function: With secondary venting
  • Operating pressure: 1 MPa (10 bar)
  • Pressure regulation range: 0.05 MPa (0.5 bar) to 0.85 MPa (8.5 bar) or 7.25 PSI to 123.25 PSI
  • Inlet pressure range: 0.5 bar to 10 bar
  • CE mark: Compliant with EU Low Voltage Directive
  • UKCA marking: Compliant with UK regulations for electrical equipment

Read more

  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Degree of protection: IP65, NEMA 4
  • Ambient temperature range: -5°C to 50°C
  • Product weight: 350 g
  • Mounting options: On manifold sub-base or individual sub-base with vertical stacking
  • Pressure gauge connection: Via retaining clamp
  • Material: Control panel - PA, Regulator housing - Die-cast aluminium

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
VABF-S4-2-R1C2-C-10
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Connector M12
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
75 Millimetre
Length of sensor -
40 Millimetre
Width sensor -
40 Millimetre
