541014

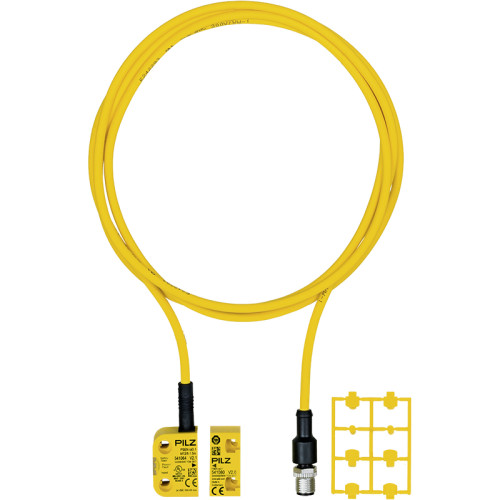

RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, one direction of actuation IP6K9K, operating distance 11 mm,

Manufacturer's No: PSEN cs3.1 M12/8-1.5m/PSEN cs3.1 1unit     Manufacturer: Pilz
RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, one direction of actuation IP6K9K, operating distance 11 mm, Sao = 8 mm, Sar = 20 mm, PU = 1 piece coded switch with actuator.

Availability Back Order

£98.48
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M12 male connector with 1.5 m cable
  • Actuation in one direction
  • Supports SDDIP6K9K
  • Switching distance: 11 mm
  • Actuation distance (Sao): 8 mm
  • Release distance (Sar): 20 mm
  • Package includes 1 coded switch with actuator

Accessories



Product

Manufacturer Material ID -
PSEN cs3.1 M12/8-1.5m/PSEN cs3.1 1unit
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Thumbnail of product picture -
Medien_800/Pictures_800/541014_800.jpg
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Width sensor -
26 Millimetre
Pilz

Availability Back Order

£98.48
