541159

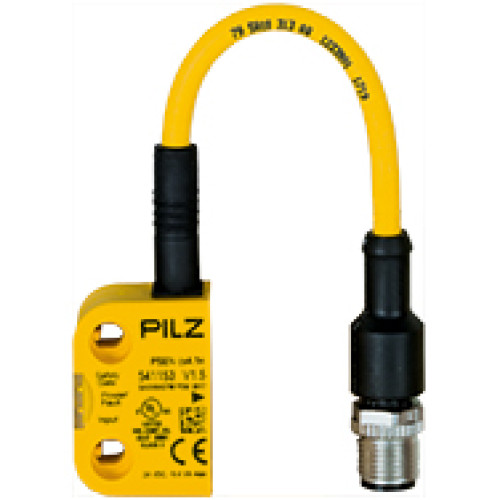

RFiD safety switch 2 safe SC outputs 8-pin M12 male connector with 0.15 m cable series connection

Manufacturer's No: PSEN cs4.1 M12/8-0.15m 1switch     Manufacturer: Pilz
RFiD safety switch 2 safe SC outputs 8-pin M12 male connector with 0.15 m cable series connection

Availability Available to order

£118.34
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M12 male connector with 0.15 m cable
  • Series connection with support for SDD
  • IP67 rated for dust and water resistance
  • Switching distance depends on actuator
  • One actuating direction
  • Fully coded switch without actuator
  • Supports 8 teach-in processes

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN cs4.1 M12/8-0.15m 1switch
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Width sensor -
26 Millimetre
Pilz

Availability Available to order

£118.34
