MS4-EM1-1/4-Z On/off valve

Manufacturer's No: MS4-EM1-1/4-Z     Manufacturer: Festo

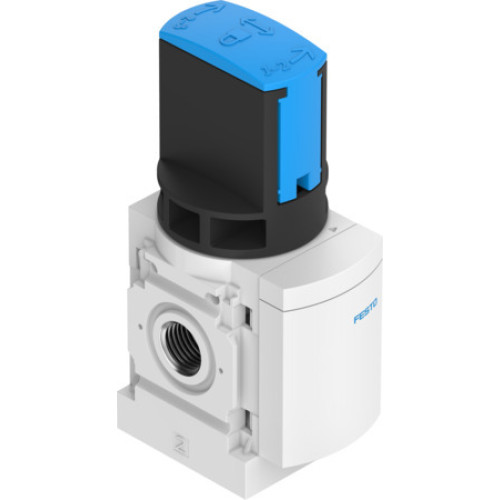

MS4-EM1-1/4-Z On/off valve

Availability Available to order

£116.79
  • Valve Type: On/off valve MS4-EM1-1/4-Z
  • Design Structure: Rotary slide valve
  • Actuation: Manual
  • Piloting: Direct
  • Valve Function: 3/2 bistable
  • Operating Pressure: 0 MPa, 1.4 MPa (0 bar, 14 bar)
  • C Value: 9 LSB
  • Standard Nominal Flow Rate: 2200 L/min
  • Operating Medium: Compressed air, inert gases
  • Corrosion Resistance Class: CRC 2 (Moderate corrosion stress)

Read more

  • Materials: RoHS-compliant, LABS (PWIS) conformity
  • Temperature Range: -10°C to 60°C
  • Mounting: In-line installation, with accessories, optional position
  • Flow Direction: Non-reversible
  • Weight: 190 kg
  • Pneumatic Connections: G1/4 (port 1, port 2, port 3)
  • Seals Material: TPE-U(PU)
  • Housing Material: Die-cast aluminium

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
MS4-EM1-1/4-Z
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Width sensor -
26 Millimetre
