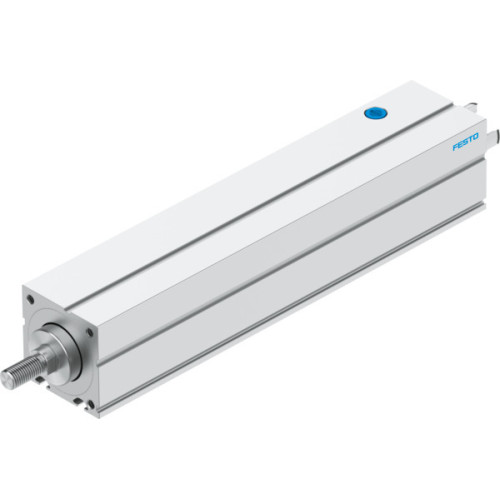

EPCC-BS-60-75-5P-A Electric cylinder

Manufacturer's No: EPCC-BS-60-75-5P-A     Manufacturer: Festo
EPCC-BS-60-75-5P-A Electric cylinder

Availability Back Order

£466.60
  • Electric cylinder EPCC-BS-60-75-5P-A
  • Size: 60 with 75mm stroke
  • Piston rod thread: M12x1.25
  • Spindle diameter: 12mm with 5mm pitch
  • Torsional backlash at piston rod: +/- 1 degree
  • Max. acceleration: 5 m/s²
  • Max. rotational speed: 3000 RPM
  • Max. speed: 0.25 m/s
  • Repetition accuracy: ±0.02 mm
  • Duty cycle: 100%

Read more

  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Storage temperature: -20°C to 60°C
  • Relative air humidity: 0-95%, non-condensing
  • Degree of protection: IP40
  • Max. drive torque: 1.2 Nm
  • Max. radial force at drive shaft: 230 N
  • Reference value effective load: 120 kg horizontal, 60 kg vertical
  • Mass moment of inertia: 0.1195 KGC per meter of stroke
  • Maintenance interval: Life-time lubrication
  • Material housing: Wrought aluminium alloy, smooth anodised
  • Material piston rod: High-alloy stainless steel
  • Material spindle nut: Steel
  • Material spindle: Rolled steel
  • Note on materials: RoHS-compliant

Accessories



Product

Manufacturer Material ID -
EPCC-BS-60-75-5P-A
Net Weight -
1.81kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
CN
UNSPSC -
31251600
