DGSL-20-150-P1A Mini slide

Manufacturer's No: DGSL-20-150-P1A     Manufacturer: Festo

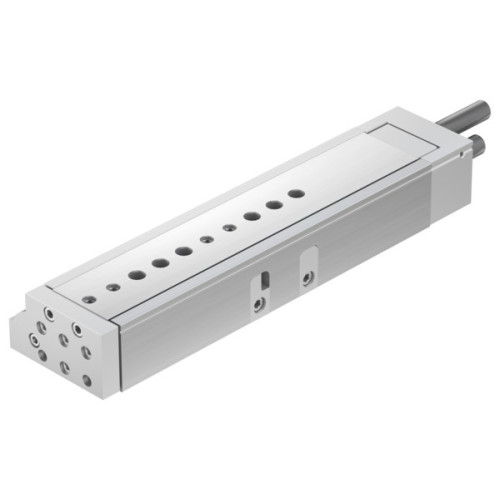

DGSL-20-150-P1A Mini slide

Availability Back Order

£1,657.62
  • Mini slide DGSL-20-150-P1A for position sensing
  • Stroke: 150 mm
  • Highly accurate and durable ball-cage guide
  • Very high repetition accuracy
  • Adjustable end position range/front length: 94.5 mm
  • Adjustable end position range/rear length: 49.5 mm
  • Piston diameter: 25 mm
  • Operating mode of drive unit: Yoke
  • Elastic cushioning rings/pads at both ends with fixed stop
  • Guide: Ball bearing cage guide

Read more

  • Position detection: Via proximity switch
  • Operating pressure: 0.1 MPa to 8 MPa
  • Max. speed: 0.8 m/s
  • Repetition accuracy: ±0.01 mm
  • Double-acting mode of operation
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 0 - No corrosion stress
  • Cleanroom class: Class 7 according to ISO 14644-1
  • Ambient temperature: 0°C to 60°C
  • Impact energy in end positions: 0.2 Nm
  • Cushioning length: 5 mm
  • Max. force Fy: 4400 N
  • Max. force Fz: 4400 N
  • Max. moment Mx: 90 Nm
  • Max. moment My: 80 Nm
  • Max. moment Mz: 80 Nm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 247 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 295 N
  • Moving mass: 1566 g
  • Product weight: 3774 g
  • Material cover: Wrought aluminium alloy
  • Material seals: HNBR
  • Material housing: Wrought aluminium alloy
  • Material piston rod: High-alloy stainless steel
  • Pneumatic connection: G1/8
  • RoHS-compliant materials
  • Type of mounting: With through-hole
  • Alternative connections: See product drawing

Accessories

PUSH IN FITTING (PK 10)

Product Code - 186096
Price £2.38
Back Order

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

QS-G1/8-6-I PUSH-IN FITTING

Product Code - 186107
Price £2.72
Back Order

QSL-G1/8-6 PUSH-IN L-FITTING

Product Code - 186117
Price £3.66
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order

Others



Product

Manufacturer Material ID -
DGSL-20-150-P1A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Number of semiconductor outputs with signalling function -
-
Number of contact energized outputs with signalling function -
-
Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Transmission range of the safety field -
- Metre
Wavelength of the sensor -
- Nanometre
Degree of protection (IP) -
UN
Width sensor -
- Millimetre
Length of sensor -
- Millimetre
Detection power for test bodies -
30 Millimetre
Time of reaction -
4 Millisecond
Thumbnail of product picture -
Thumbnail of product picture -
Medien_800/Pictures_800/544021_800.jpg
Ambient temperature -
0 Degrees celsius
Degree of protection (IP rating) -
IP54
Degree of protection (IP rating) -
IP67
Degree of protection (NEMA) -
Other
Detection capability for test bodies -
30 Millimetre
Diameter axle -
20 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
500 Millimetre
Housing material -
Aluminium
Max. output current at protected output -
380 Milliampere
Number of protected contact energized outputs -
2
Number of protected semiconductor outputs -
2
Operation agent-safety class -
Safety class 3
Physical measurement principle -
Magnetic
Resolution of the light curtain -
30 Millimetre
Safety field height -
300 Millimetre
Scope of delivery of the one-way system -
Receiver
Switching voltage of OSSD at state "high" -
18 Volt
Type of electric connection -
Connector M12
Type of safety acc. IEC 61496-1 -
4
Type of shaft encoder -
Hollow shaft
Type of switching output of the OSSD -
PNP
Voltage type -
DC
With beam coding -
Festo
