559332

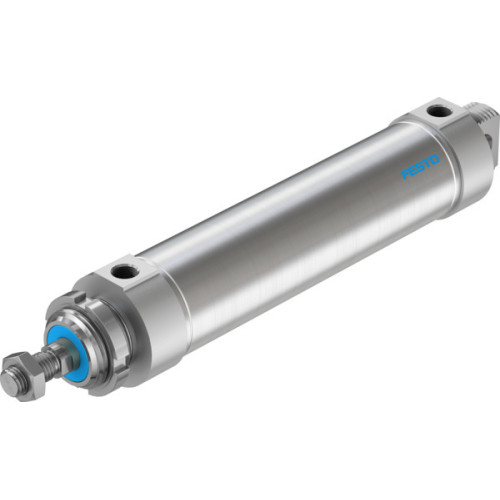

DSNU-63-200-PPS-A Round cylinder

Manufacturer's No: DSNU-63-200-PPS-A     Manufacturer: Festo
DSNU-63-200-PPS-A Round cylinder

Availability Available to order

£145.42
  • Type: Round cylinder
  • Stroke: 200 mm
  • Piston diameter: 63 mm
  • Piston rod thread: M16x1.5
  • Cushioning: Self-adjusting pneumatic end-position cushioning (PPS)
  • Mounting position: Any
  • Operating pressure: 0.1 MPa, 1 MPa, 1 bar, 10 bar
  • Mode of operation: Double-acting
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class: CRC 2 - Moderate corrosion stress

Read more

  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: -20°C to 80°C
  • Cushioning length: 21 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi):
    • Return stroke: 1681.9 N
    • Advance stroke: 1870.3 N
  • Moving mass: 959 g
  • Product weight: 2325 g
  • Pneumatic connection: G3/8
  • Material:
    • Cover: Wrought aluminium alloy
    • Seals: NBR, TPE-U(PU)
    • Piston rod: High-alloy steel
    • Cylinder barrel: High-alloy stainless steel
  • Note: Lubricated operation possible; RoHS-compliant materials


Product

Manufacturer Material ID -
DSNU-63-200-PPS-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
DE
UNSPSC -
41111926
Festo

Availability Available to order

£145.42
