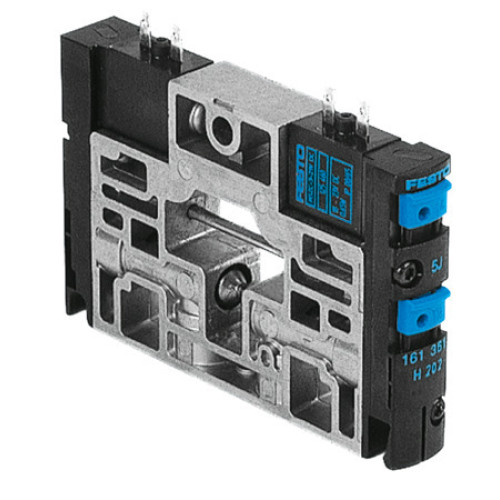

CPV14-M1H-2X2-GLS-K-1/8 Solenoid valve

Manufacturer's No: CPV14-M1H-2X2-GLS-K-1/8     Manufacturer: Festo
CPV14-M1H-2X2-GLS-K-1/8 Solenoid valve

Availability Available to order

£151.45
  • Solenoid valve CPV14-M1H-2X2-GLS-K-1/8 designed for valve terminal CPV
  • Valve housing contains two 2/2-way normally closed valves
  • Valve function: 2x2/2 closed, monostable
  • Electrical actuation, valve size: 14 mm
  • Standard nominal flow rate: 800 l/min
  • Operating pressure: -0.09 MPa to 1 MPa
  • Design: Piston gate valve with pneumatic spring reset
  • Degree of protection: IP65, nominal size: 6 mm
  • Sealing principle: Soft, optional mounting position
  • Manual override: Detenting and non-detenting

Read more

  • Type of piloting: Pilot actuated, external and internal pilot air supply
  • Flow direction: Non-reversible, symbol: 991801
  • Pilot pressure: 0.3 MPa to 8 MPa
  • b value: 0.37, C value: 3.2 LSB
  • Switching time off: 16 ms, switching time on: 13 ms
  • Duty cycle: 100% with holding current reduction
  • Electrical power consumption: 0.65 W
  • Max. positive test pulse with 0 signal: 1400 ms, max. negative test pulse with 1 signal: 400 ms
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Lubricated operation possible, vibration resistance: Severity level 2
  • Shock resistance: Severity level 2, corrosion resistance class CRC: 2
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Storage temperature: -20°C to 40°C, media temperature: -5°C to 50°C
  • Ambient temperature: -5°C to 50°C, product weight: 120 g
  • Type of mounting: With through-hole, common line pilot air ports
  • Pneumatic connections: G1/8, RoHS-compliant materials
  • Material seals: HNBR, NBR, material housing: Die-cast aluminium, brass, POM, PPS, steel


Product

Manufacturer Material ID -
CPV14-M1H-2X2-GLS-K-1/8
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Voltage type -
UN
Material housing -
UN
Type of electric connection -
UN
Type of switching output -
UN
Type of switch function -
UN
Setting procedure -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Construction type housing -
UN
Standard for interfaces -
UN
Material active area of sensor -
UN
Material of cable sheath -
UN
