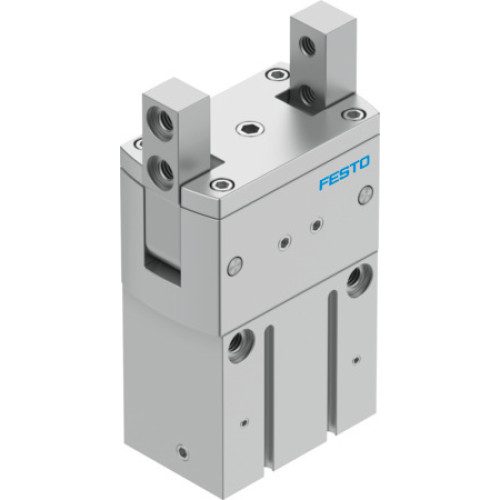

HGRT-25-A Radial gripper

Manufacturer's No: HGRT-25-A     Manufacturer: Festo
HGRT-25-A Radial gripper

Availability On Request

£677.36
  • Model: HGRT-25-A Radial gripper
  • Size: 25 mm
  • Max. replacement accuracy: 0.2 mm
  • Max. angular gripper jaw backlash ax, ay: 0.1 degrees
  • Max. opening angle: 180 degrees
  • Repetition accuracy, gripper: 0.02 mm
  • Number of gripper jaws: 2
  • Mounting position: Optional
  • Mode of operation: Double-acting
  • Gripper function: Radial

Read more

  • Design: Force pilot operated motion sequence
  • Position detection: Via proximity switch and inductive sensors
  • Operating pressure: 3 BAR (min) - 8 BAR (max)
  • Max. operating frequency of gripper: 3 HZ
  • Min. opening time at 0.6 MPa: 309 ms
  • Min. closing time at 0.6 MPa: 343 ms
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Ambient temperature: 5°C (min) - 60°C (max)
  • Total gripping torque at 0.6 MPa, opening: 1348 NCM
  • Total gripper torque, closing, 0.6 MPa: 1208 NCM
  • Mass moment of inertia: 2.1 KGC
  • Max. force on gripper jaw Fz static: 180 N
  • Max. torque at gripper My static: 10 NM
  • Max. torque at gripper Mz static: 1 NM
  • Lubrication interval for guide components: 10 years
  • Product weight: 540 g
  • Type of mounting: Via female thread and centring sleeve
  • Pneumatic connection: M5
  • Material housing: Smooth-anodised wrought aluminium alloy
  • Material gripper jaws: Hardened steel
  • RoHS-compliant materials


Product

Manufacturer Material ID -
HGRT-25-A
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
Festo

Availability On Request

£677.36
